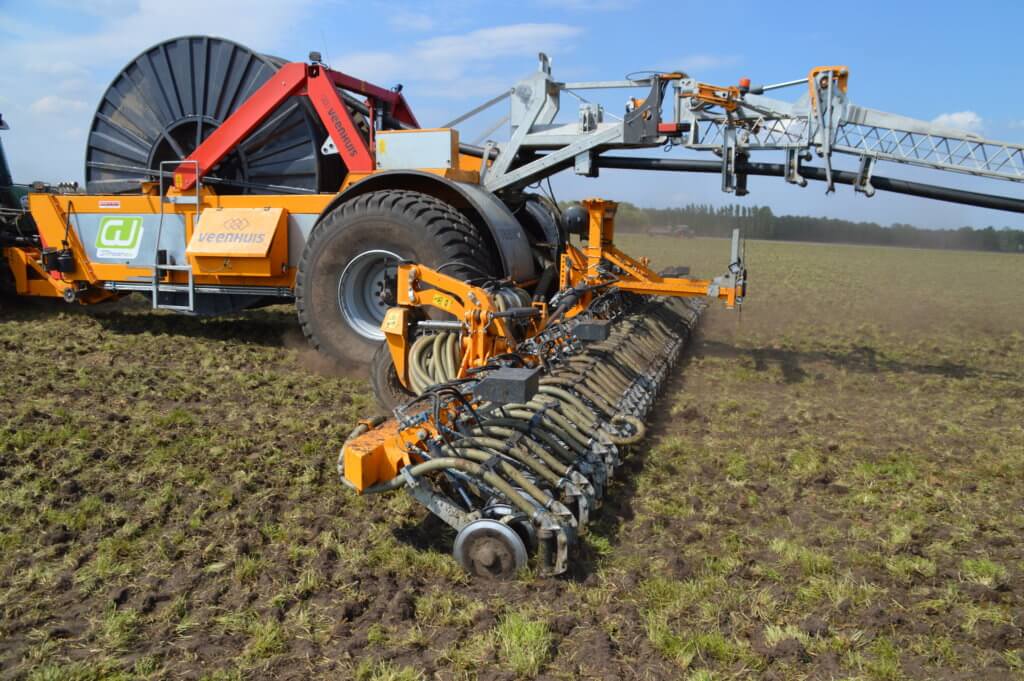

Veenhuis Rotomax Reel System

When slurry tankers stop – the Veenhuis Rotomax reel system starts. Accustomed to the world’s toughest conditions, the Rotomax reel system won’t let rain or soft-going stand in its way.

Gallery

Veenhuis Rotomax Drag Hose System | Excels in Damp Soil | FarmChief
Veenhuis Rotomax Drag Hose System | Excels in Damp Soil | FarmChief
Veenhuis Rotomax Drag Hose System | Excels in Damp Soil | FarmChief
Veenhuis Rotomax Drag Hose System | Excels in Damp Soil | FarmChief

Features and Benefits

Proven in the Netherlands, (a fairly high bar by anyone’s standards) this system is designed to overcome very wet ground, limited spreading windows of opportunity, and the need for efficient effluent management.

As we all know, soil compaction slows crop growth. And nobody needs that. The Veenhuis reel systems feature a 12-metre operating width and the combination of this, and low tyre pressure, minimises compaction during injection to give your crops the best possible growing conditions. The drag hose system provides a continuous supply of slurry so no time is lost loading and unloading; a drag hose system can keep fertilising non-stop.

There’re also another couple of things to note: You’ll avoid the disruption that can come with effluent tankers. And day to day operations can keep going just as they always have. So, if your soil types are prone to a bit (or a lot) of damp this could be the solution to maximising effluent recycling at your place.

Technical Specifications

Model

Capacity

Max. pump rate

Quanta pump unit

11000ltr

300m3/hr

Model

Hose diameter

Hose length

Valve between reel and injector

Rotomax reel

4.5in/5in

550/500m

6in

Model

Working width

Premium-ject 1200

12.00m

Parts and Options

Headlands Mobility

Due to the maneuverer ability of the Rotomax it can make a full turn back down the headland. Also allowing the hose to be picked up and not pulled along the paddock to where you’re located. This due to Rotomax’s large 12-meter wingspan.
Veenhuis Rotomax

Hose Placement

Hose placement covering up to 1200 meters can be placed in alternating positions along the surface by a 12-meter swivel bar up to the fertiliser injector, this allows the operator to work in rows without damage to the crop or pasture.

Minimal Damage

Designed to unreel and reel up on the go without having to fully unwind. No need to pull along the surface reducing smearing to soil and crop.

Premiumject Injector Design

This slurry injector has a width of 12-meters and is fitted with pneumatic foot valves. These slurry injectors are fitted with the unique 3-part chute discs with a diameter of 350mm and a thickness of 24mm.

FarmChief Implement Options

Effluent Pump Mixers - Mega Mix

FarmChief Effluent Pump Mixers

The FarmChief effluent pump mixers have the ability to pump between ponds, into tankers or prime umbilical pumps while still maintaining a superior mixing capacity.

FarmChief Effluent Pump Mixers | View Now

FarmChief Varimount 350 PTO Compressor

Versatile, compact, portable and durable, this compressor delivers unbeatable air power on the move. Its range of jobs can’t be compared, cleaning harvesting equipment, clearing umbilical slurry hose, sandblasting, and operating power tools.

FarmChief Varimount 350 PTO Compressor | View Now

Diskacrop

FarmChief Heavy Duty Speed Discs

Want something with optimum output but minimal effort? These Diskacrop Speed discs can take out the trash, even in the wet, very effectively.

FarmChief Heavy Duty Speed Discs | View Now
