Heavy Duty Speed Discs

The Diskator and Diskacrop take out the trash, very efficiently, even in the wet. The result of all their hard work is optimum output – encouraging decomposition of organic matter, reducing soil erosion and giving a better finish

Request a free demo Download Brochure

Download

Please enter your details to download the brochure.

    By filling out this form you agree to the terms of our Privacy Policy

    Gallery

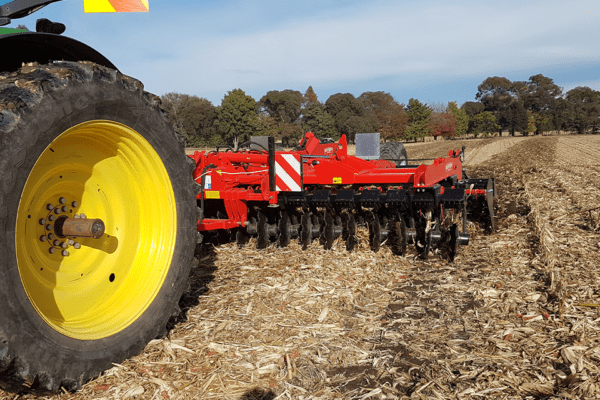

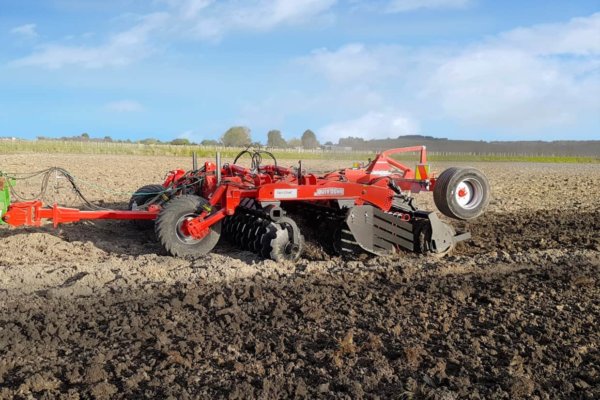

    Diskator or Diskacrop
    Heavy Duty Speed Discs
    Heavy Duty Speed Discs
    Heavy Duty Speed Discs
    Heavy Duty Speed Discs

    Features and Benefits

    In widths of 6-12m, the Diskator is designed to be able to be used as a primary or secondary cultivator. This high-speed incorporator increases your productivity on the farm whether it is working down ploughing, incorporating stubble, or attacking a grass paddock, the Diskator has all bases covered. Mounted with 560mm discs with a breakout force of 180kg it makes for a very impressive machine. In addition, the Diskators sealed bearings mean you’ll get years of hassle free use.

    Then, stepping up a notch: The Diskacrop. This is for situations when there is a large amount of trash or you need seriously deep working. Mounted with 660mm discs at a spacing of 265mm, the Diskacrop is a machine that stops for nothing, whether in wet conditions or seemingly impossible trash situations, (wet maize stubble springs to mind), this machine will handle anything. So, be prepared for better, more productive, soil.

    Technical Specifications

    Model

    Working width

    Weight approx.

    No. of discs

    Disc size

    Disc spacing

    Kg per disc

    Frame

    HP Required

    400

    4.00m

    3940kg

    32

    660mm(26in)x6mm

    265mm(10.4in)

    125kg

    250mm(9.8in) x 250mm(9.8in)

    140+

    500

    5.00m

    4870kg

    40

    660mm(26in)x6mm

    265mm(10.4in)

    125kg

    250mm(9.8in) x 250mm(9.8in)

    170+

    600

    6.00m

    5450kg

    48

    660mm(26in)x6mm

    265mm(10.4in)

    125kg

    250mm(9.8in) x 250mm(9.8in)

    190+

    Model

    Working width

    Weight approx.

    No. of discs

    Disc size

    Disc spacing

    Kg per disc

    Frame

    HP Required

    600

    6.00m

    8538kg

    48

    560mm(22in)x5mm

    250mm(9.8in)

    71kg

    300mm(11.8in) x 300mm(11.8in)

    180+

    700

    7.00m

    9018kg

    56

    560mm(22in)x5mm

    250mm(9.8in)

    71kg

    300mm(11.8in) x 300mm(11.8in)

    200+

    800

    8.00m

    9506kg

    64

    560mm(22in)x5mm

    250mm(9.8in)

    77kg

    300mm(11.8in) x 300mm(11.8in)

    220+

    1000

    10.00m

    10458kg

    80

    560mm(22in)x5mm

    250mm(9.8in)

    72kg

    300mm(11.8in) x 300mm(11.8in)

    280+

    1200

    12.00m

    10926kg

    96

    560mm(22in)x5mm

    250mm(9.8in)

    67kg

    300mm(11.8in) x 300mm(11.8in)

    300+

    Testimonials

    STUART’S VIEW

    The Diskacrop is also a recent purchase of third-generation commercial grower, Stuart Briant. Gisborne-based Stuart works 400 hectares of flat to rolling country including around 100 hectares, annually, of maize for seed and for feed. Some specialist varieties end-up in products ranging from flour to cornflakes, and corn chips.

    Stuart’s “20-odd year old” discs had done a lot of hard work and needed to be upgraded, “We used them all the time. It was either re-build our discs or get new ones,” Stuart says. As it turns out, he traded-in on the Diskacrops.

    Stuart says what appealed about the Diskacrop was the gain in efficiency and ability to do more in one pass.

    He will be using the Diskacrop, which is a recently new addition to his cultivation system, to disc grass and fallow paddocks ready for maize crops and for squash.

    “They’re good, I’m quite impressed with them.”

    - Diskacrop 500 Heavy Duty Speed Disc
