Mechanical Strip Till

Your ideal machine for Strip Till cultivation, at speed. Extensively used for maize crops and perfect for a range of cropping situations, especially if you have large quantities of crop to get in.

Custom row width adjustments (between 450mm and 750mm) and x3 front cutting discs per row means a superior level of cultivation is achieved through only a single pass.

Gallery

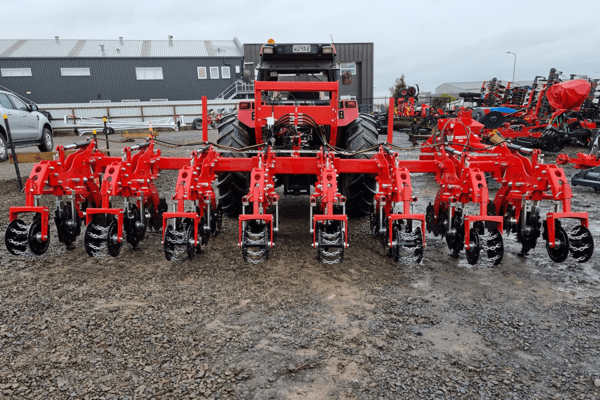

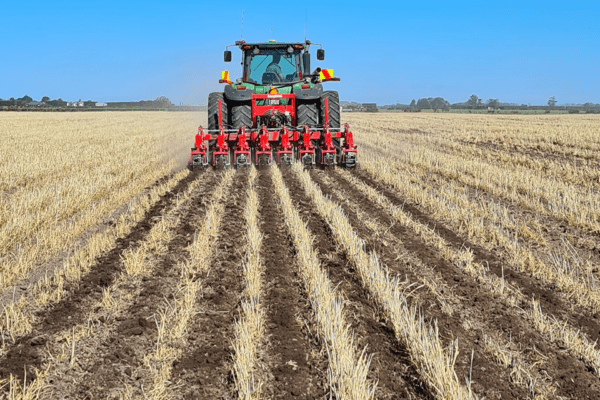

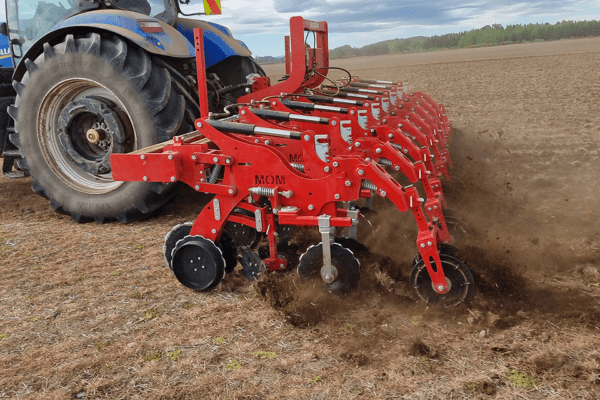

FarmChief Mechanical Strip Till
FarmChief Mechanical Strip Till
FarmChief Mechanical Strip Till
FarmChief Mechanical Strip Till

Features and Benefits

A new, efficient, cutting-edge approach to Strip-Tilling. Introducing the FarmChief Strip Hawk Easy.

The FarmChief Strip hawk Easy mechanical strip-till takes ploughing, weeding, fertilising and harrowing to the next level. Not only that, but it is more efficient, reduces costs and protects your soil.

The harsh New Zealand winters make strip-tillage the perfect solution for protecting the soil when grazing stock on fodder crops through the winter. Reducing the work needed on these paddocks means maintaining the soil structure for spring cultivation.

  • x3 front cutting discs per row ensures the crop residue is cut with precision.
  • x2 residue manager discs for removing residue.
  • x2 limitation discs work in sync to establish the row width. Easily adjustable length, width and cutting angle.
  • Multiple rear roller options eliminate clods and level the finish.
  • The ripper leg with auto-rest opens the soil, up to 30cm deep.

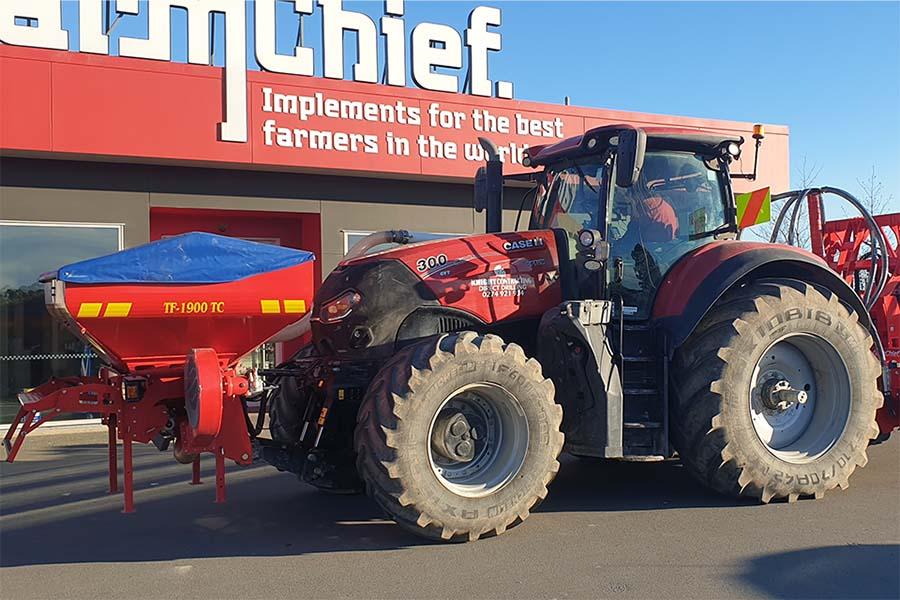

  • Add on a FarmChief front fert tank to apply fertiliser behind the ripper leg for greater working efficiency.

Technical Specifications

Model

Working width

Transport Width

Working Speed

Rows

Row Spacing

Weight

4 Row Fixed

3m

2.75m

6-12 km/h

4 Rows

450mm - 750mm

1300kg

6 Row Fixed

4.5m

2.75m

6-12 km/h

6 Rows

450mm - 750mm

1950kg

Model

Working Width

Transport Width

Working Speed

Rows

Row Spacing

Weight

8 Row Folding

6m

2.9m

6-12 km/h

8 Rows

450mm - 750mm

3000kg

12 Row Folding

9m

3m

6-12 km/h

12 Rows

450mm - 750mm

-

Model

Working Width

Transport Width

Working Speed

Rows

Row Spacing

Weight

6 Row Telescopic

4.5m

2.7m

6-12 km/h

6

450mm - 750mm

2300kg

8 Row Telescopic

6m

3.2m

6-12 km/h

12

450mm - 750m

3000kg

Testimonials

Graeme’s view

Graeme Burnett has a 300ha milking platform and 250ha run-off on flat to rolling country at Dacre on the Southland Plains. It’s fully self-contained, doing all its own cropping.
He’s been impressed by FarmChief’s sales follow-up, in particular Ben who he says is a salesman who can also actually also do the job.
“We bought a roller that needed a tweak so the paddles worked better on the flat. They came out, looked at it and organised new parts. It was extremely good.”
Graeme says it’s a welcome change from a lot of the gear they have bought elsewhere, which has left them with a bit of welding to do. “FarmChief do far more than other outfits.”

- After Sales

Features

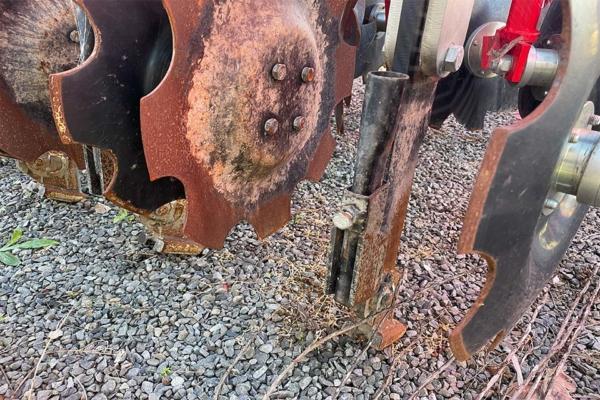

Fertiliser Optimisation

Deliver fertiliser directly down the ripper leg exactly in the channel for crop optimisation.

Triple Disc Cutting

Gain optimal soil germination with the triple disc cutting technique allowing for surrounding soil to be cultivated for an ultimate one pass cultivation.

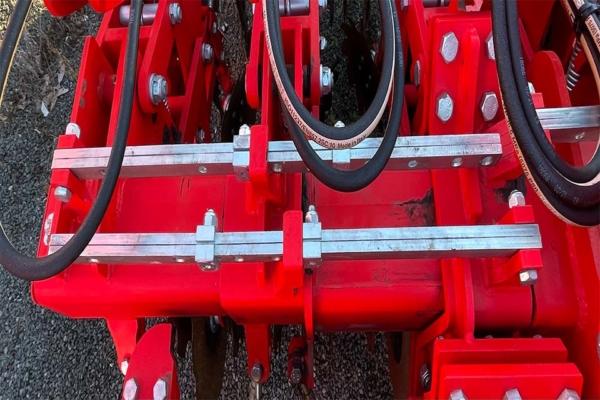

Hydraulic Width Adjustment

Work different crop varieties with the variable row spacing (between 450mm to 750mm), simply change working widths by a singular hydraulic lever leaving the operator with more working time.

Hydraulic Auto Reset

Hydraulic auto reset leg ensuring the protection of the machine when encountering foreign objects.
