Folding Speed Discs

Simply smart efficiency. Folding Speed Discs from FarmChief are ideal for covering more land, whilst achieving a true one-pass cultivation job. Ideal for larger-scale farmers or contractors thanks to the capacity for upgrading or combining other FarmChief implements for improved efficiency.

Download Brochure

Download

Please enter your details to download the brochure.

    By filling out this form you agree to the terms of our Privacy Policy
    Request a demo

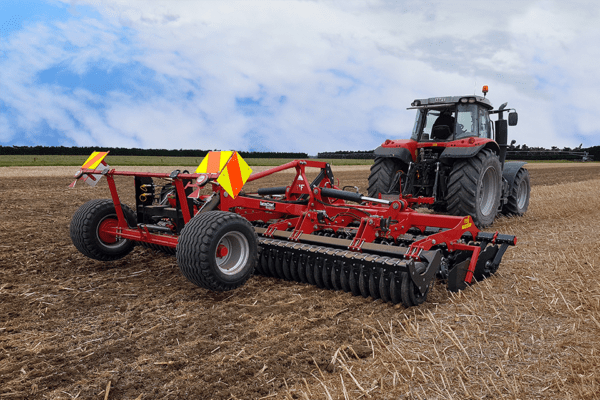

    FarmChief Machinery ExpressPlus Folding Speed Discs

    Step away from the traditional tine cultivator to FarmChief’s modern, highly efficient speed disc cultivators. Choose either 4.5m or 6m implements to best fit with your operation.

    The trailed Speed Discs from FarmChief feature two sets of angle-mounted 560mm discs, working up to 180mm deep. These discs are set at the optimum angle for a more effective cut and positioned for ideal soil disturbance and residue incorporation. Levelling tines and your choice of rear roller follow to create a fine tilth and a desirable seedbed for a great strike.

    Optionally,  add on a rear drawbar to tow power harrows or a roller and you’ve got yourself the perfect one-pass machine.

    These are exceptional after ploughing, ideal for stubble incorporation and work well opening up sprayed-out grass paddocks. With working speeds up to 16km/h, choose to save time and do the job better

    ExpressPlus Features

    FarmChief Machinery ExpressPlus Folding Speed Discs

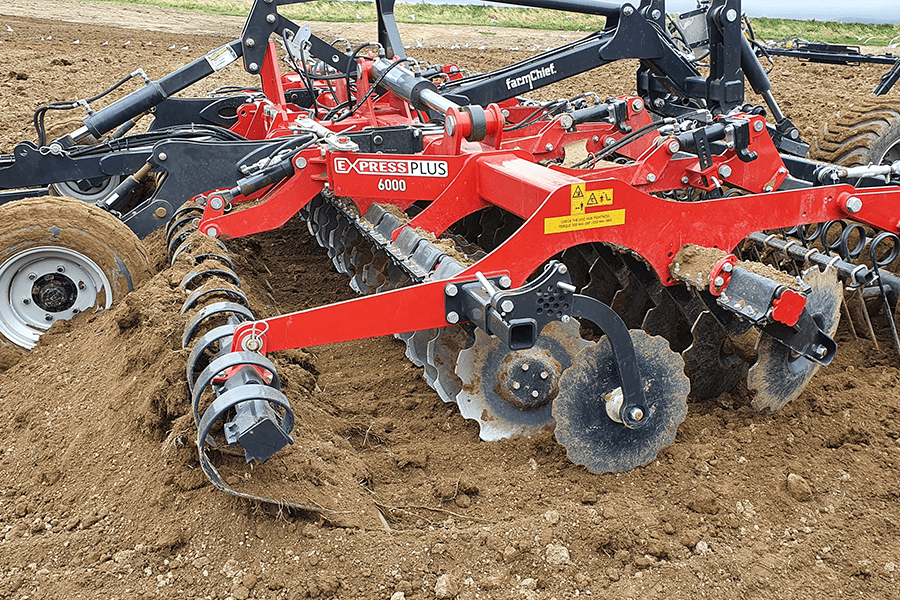

    Unique Cutting System

    Our intelligent, specifically designed system of discs and arms, combined with our proven optimum cutting angle, ensures excellent penetration, soil disturbance and trash handling, making these discs perfect for creating a seedbed out of a variety of crops and pastures.

    The 560mm cone-shaped discs and independently mounted, reinforced disc arms work together to ensure that as the blade wears during use, the angle of penetration stays the same, allowing them to quickly deal with clods and large amounts of residue.

    FarmChief Machinery ExpressPlus Folding Speed Discs

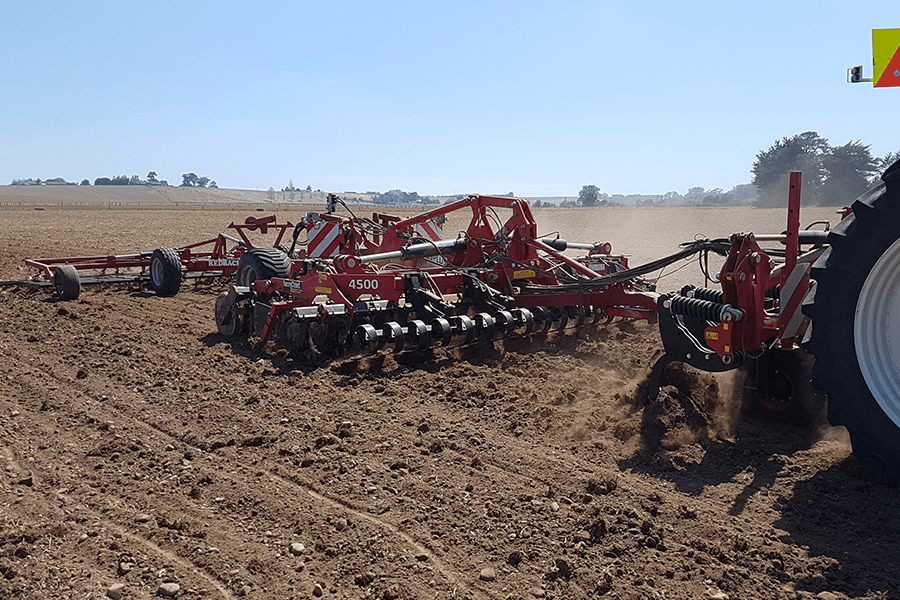

    Heavy-Duty, Long-Life Build

    The heavy-duty, highly-engineered full-width chassis makes the ExpressPlus Speed Discs a versatile machine capable of both primary and secondary cultivation while being an effective finishing tool. The heavy build improves the penetration of each blade, increasing the depth of penetration. Working speeds of up to 16km/h can be achieved without the risk of cracking or warping due to the heavy-duty build.

    FarmChief Machinery ExpressPlus Folding Speed Discs

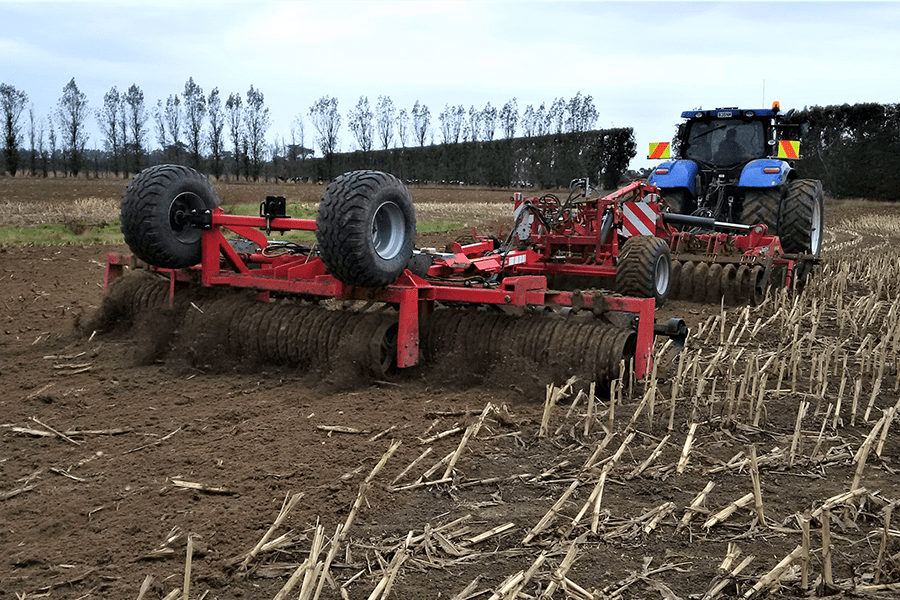

    Flexible, Adaptable Machinery

    In order to succeed in New Zealand conditions, modern machinery needs to be capable of adapting to suit the variety of working conditions.

    FarmChief’s Trailed ExpressPlus Speed Discs offer hydraulic depth control as standard, allowing the operator to adjust and adapt to changing conditions from the cab – saving time and effort when on the job.

    Additionally, all ExpressPlus models come with adjustable finger tines as standard. With multiple height and angle settings, these can easily be changed to improve the performance of the rear roller, reducing clumping and producing a useful surface tilth.

    Gallery

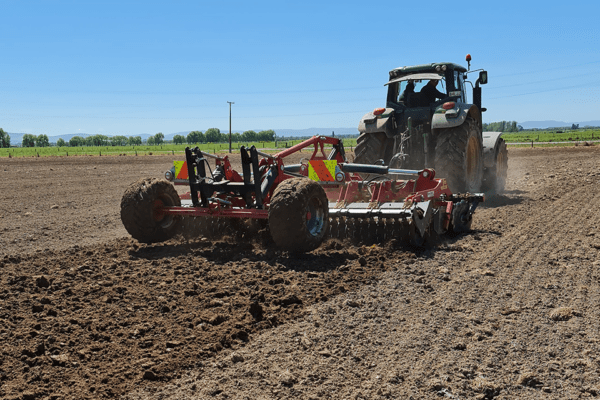

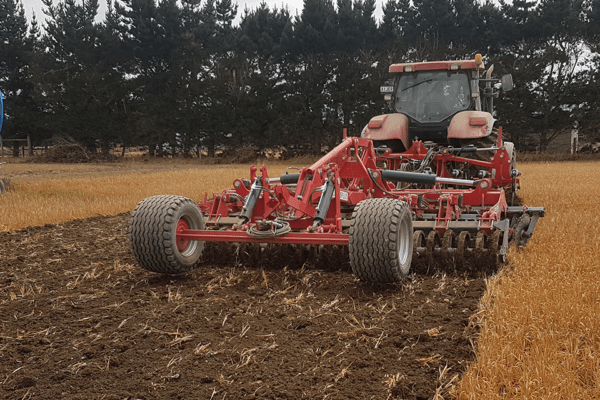

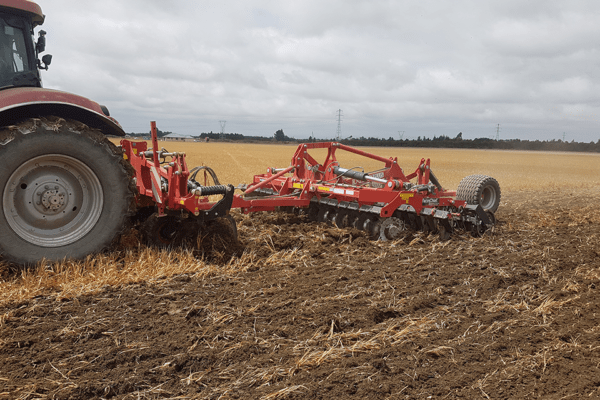

    FarmChief 4.5metre Speed Discs
    FarmChief Machinery ExpressPlus Folding Speed Discs

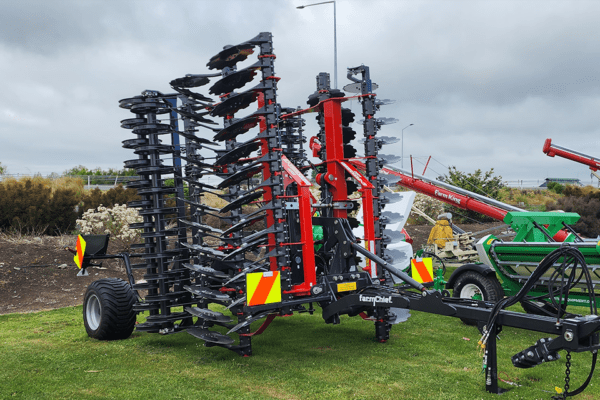

    FarmChief 6 Metre Speed Discs
    FarmChief Machinery ExpressPlus Folding Speed Discs
    FarmChief Machinery ExpressPlus Folding Speed Discs
    FarmChief Machinery ExpressPlus Folding Speed Discs
    FarmChief Machinery ExpressPlus Folding Speed Discs
    FarmChief 4.5metre Speed Discs

    Technical Specifications

    Model

    Working Width

    Approx Weight

    No. of Discs

    Disc Size

    Finger Tines

    Folding

    HP Required

    EXP4500 Trailed

    4.5m

    3600kg

    36

    560mm x 6mm

    Standard

    Yes

    140+

    EXP6000 Trailed

    6.0m

    5100kg

    48

    560mm x 6mm

    Standard

    Yes

    160+

    Rear Roller Options

    FarmChief Machinery ExpressPlus Speed Discs DD Roller

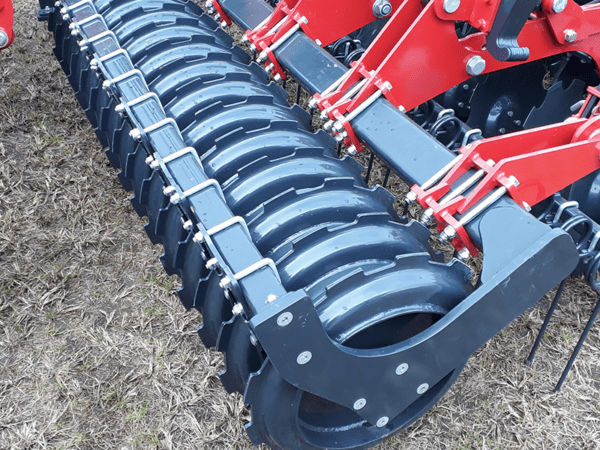

    DD Ring Roller

    The DD Roller is a solid steel roller with a castle ridge, ideal for stony conditions. The hard ridge pushes stones into the ground and leaves a firm, level seedbed free of residue.
    FarmChief Machinery ExpressPlus Speed Discs U-Box Roller

    U-Box Roller

    The U-Box Roller is a light roller great for sticky and wet conditions. The soil compacts into the roller, doing most of the breaking work and reducing the wear on the roller.
    FarmChief Machinery ExpressPlus Speed Discs Double U-Box Roller

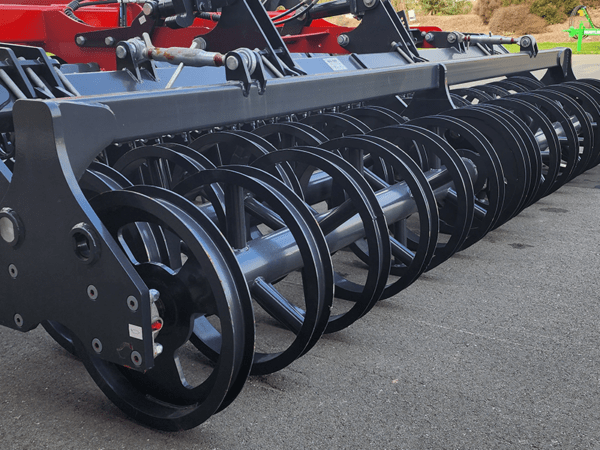

    Double U-Box Roller

    The Double U-Box Roller has two roller rows, doubling the surface area of the roller, whilst adding weight to the rear of the implement and eliminating bouncing.
    FarmChief Machinery ExpressPlus Speed Discs Cage Roller

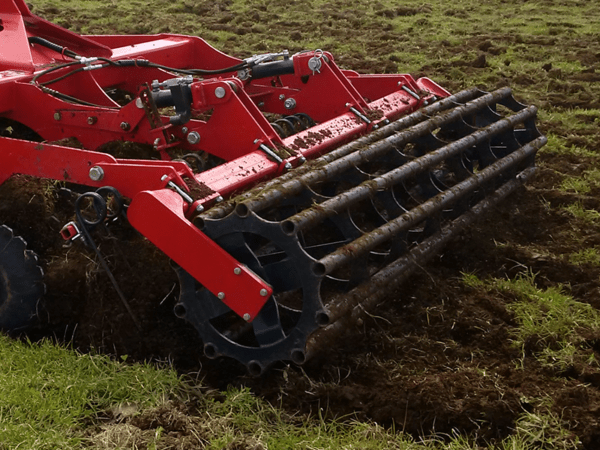

    Cage Roller

    The Cage Roller is the lightest available roller, putting less stress on the tractor, meaning less HP is required and less fuel used – the Cage Roller handles sticky conditions very well.

    Implement Upgrades

    FarmChief Machinery ExpressPlus Folding Speed Discs

    AirSeeder

    Sow directly after cultivating by adding on a FarmChief AirSeeder to your ExpressPlus Speed Discs. Perfect for putting in catch crops.
    FarmChief Machinery ExpressPlus Folding Speed Discs

    Front Levelling Paddles

    Ensure a more even and level finish when adding a set of front levelling paddles to the ExpressPlus Speed Discs - perfect for dealing with those clumpy conditions with lots of trash.
    FarmChief Machinery ExpressPlus Folding Speed Discs

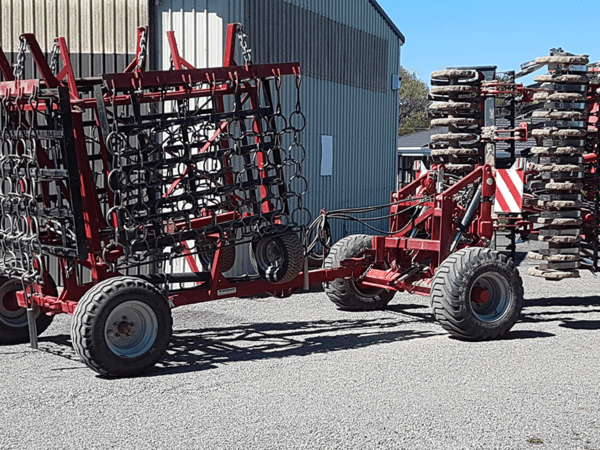

    Rear Drawbar

    Upgrade the capabilities of the FarmChief ExpressPlus Speed Discs with a rear drawbar, enabling towing of a rear roller or harrows for an improved finish.
    FarmChief Machinery ExpressPlus Folding Speed Discs

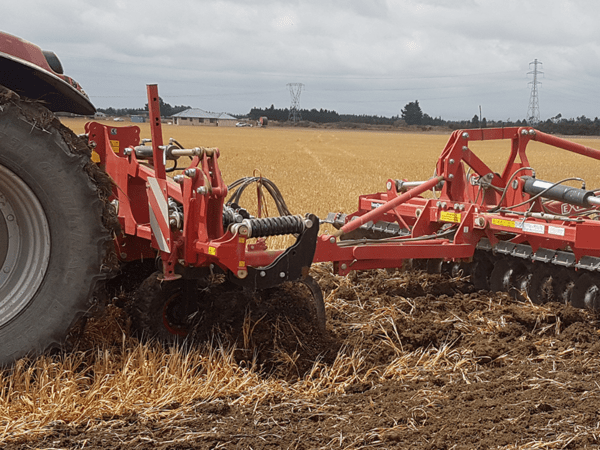

    ExpressPro Pre-Ripper

    Run a FarmChief ExpressPro Pre-Ripper in front of the speed discs for greater primary cultivation abilities in exceptionally pugged or dense land.

    Testimonials

    Campbell’s view

    Campbell McArthur farms 263 hectares of flat land at Pendarves, Canterbury, in crops including; wheat, barley, oats, processed peas, seed peas, red beets, ryegrass, broad beans, and linseed. Between crops, he grazes lambs. Campbell’s goal was to find a way to effectively integrate crop residue into the ground, ready for the next season’s crops. There were a couple of important considerations behind his thinking: Increasing concerns around burning-off (including bans after the 2017 Canterbury Port Hills fires), and the stringent demands of his local irrigation scheme’s environmental plan, which doesn’t favour ploughing. The Express Plus 6000 Speed Disc had already been on Campbell’s radar and was a pragmatic choice. He says he particularly appreciates the implement’s robustness and precision engineering. “It’s very well made”. He can’t fault its performance. “It does a really beautiful job.”

    - Express 6000 Speed Discs

    Mike's View

    Mike Brensell works with Hamish Ryan on Ryan Farms in Lumsden. Mike was quietly quite chuffed with the new ExpressPlus Speed Discs.

    - ExpressPlus 4500 with Double UBox Roller

    Ben's View

    Ben Pankhurst, from Pankhurst Contracting in Greta Valley, North Canterbury. Ben says the ExpressPlus Speed Discs have been ‘a great tool for us’.

    - ExpressPlus 4500 Speed Discs
