SuperJet Effluent Pump Mixer

The dairy farmers’ solution for pumping and mixing herd homes without removing all the grates. This powerful mixer pump enables high-capacity, short-distance pumping with incredible agitation abilities.

Talk to a specialist

Gallery Technical Specifications Testimonials The Farmchief Range TALK TO A SPECIALIST IN YOUR AREA Contact Us

Gallery

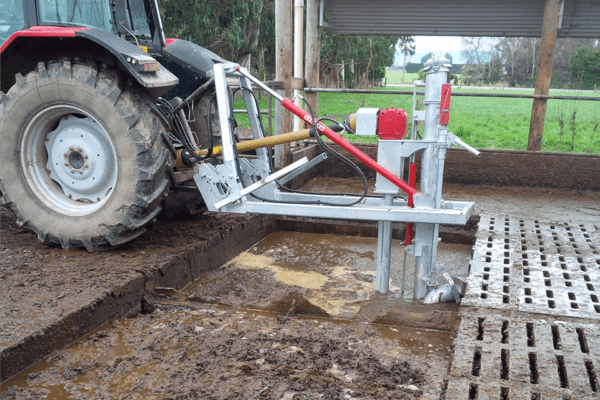

FarmChief Machinery SuperJet Herd Home Mixer Pump

Features and Benefits

Used most often for pumping out herd homes, the SuperJet Effluent Pump Mixer provides the ability to pump high volumes of slurry over short distances thanks to the high-capacity turbo drum.

In addition, the under-surface agitator makes getting more out of your herd home, easy.

Thanks to the 3PTL system, this pump can remain attached to the tractor and PTO whilst being transported, improving working rates and saving the hassle

Options of 5”, 6” or 8” pipework.
Variable depth for flexibility
Optional full hydraulic movement on all functions – Control everything from the tractor!
Efficient 300º rotation & 90º agitator head
Impressive A-blade impeller with 610mm drum
Large flow rate up to 1225m3/hr (4500 gal/min)

Request A Demo Download the brochure

Technical Specifications

Model

Length

Capacity

Features

HP Required

SJ/5

125mm discharge pipe

13600ltr mixing capacity per minute

4 blade impeller

85+

SJ/6

150mm discharge pipe

20400ltr mixing capacity per minute

4 blade impeller

105+

SJ/8

175mm discharge pipe

29500ltr mixing capacity per minute

4 blade impeller

165+

Testimonials

Doug’s view.

Caldwell Contracting have been leaders in their field for over 20 years, covering all aspects of agriculture from silage to wood chipping to cultivation and effluent management and spreading. You can learn more at www.caldwellcontracting.co.nz Doug Caldwell says the substantial family business, which operates out of Edendale, Southland, is constantly looking for innovations in effluent management and understand the needs of the dairy farmers they work with. “The Storth Mega Mix has been good. It’s safer and faster than others. And it’s definitely better than conventional stirrers. “We use it for mixing all ponds and also loading our transport tankers.”

- Storth Mega Mix

Eddie’s view.

Eddie Rabbitt is the manager of Rabco Ag – a large-scale contracting business based in Western Southland. Eddie reckons the Mega Mix provides a better result in terms of getting solids out of the pond, and with the canon breaking up the surface. The company uses the Mega Mix wherever they are called to a slurry job. “It works a treat.” He’s also putting in a good word for the FarmChief parts and technical support team. “It’s a good service and they get things done on time.” To see more details on Rabco, visit www.rabbitt.co.nz

- Storth Mega Mix
