The Rollmax Roller Drill with air seeder is for the serious operator wanting economy of scale and large output. From 4.3 metres up to 9.3m with a transport width of 2.5m, this complete roller drill delivers excellent result.

Market-leading strength is built into every Rollmax, with the largest roller axle on the market, large 620mm rings, twin-beam drawbars, HD 150mm x 100mm box sections, and double-reinforced pivot points.

Centre-pivot folding wings provide excellent contour following across undulating ground, while keeping loads balanced for a stronger, more resilient machine. With very few grease points on each wing, ongoing maintenance is fast, simple and field-friendly.

The result is a more resilient roller capable of taking a greater load, working faster and into tougher ground without the risk of snapping axles.

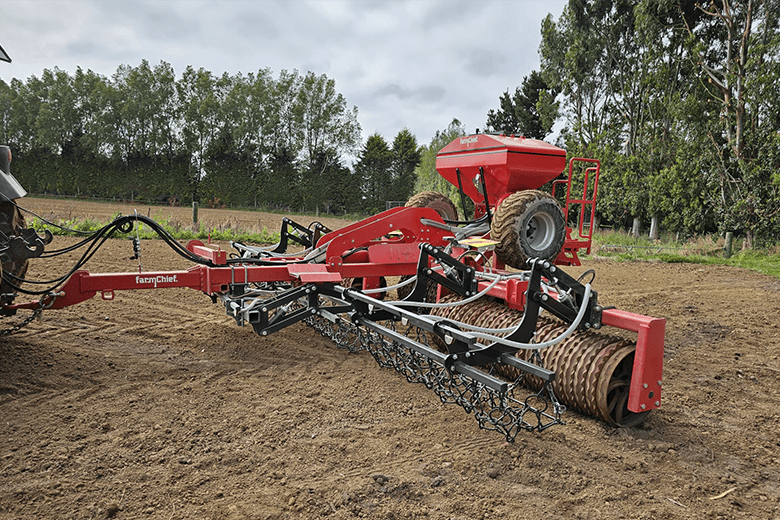

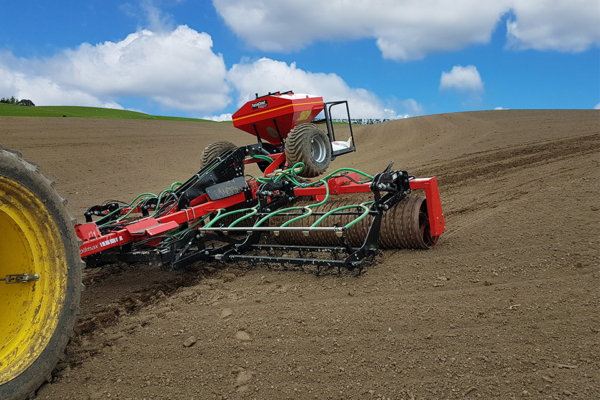

FarmChief Machinery Rollmax Roller Drill with chain harrows

The airseeder itself is a fine seeder suited for metering every type of seed, from Swedes right through to grain, at rates from 0.5kg/Ha up to 250kg/Ha. One client has said they’ve got it sorted right down to the last cupful. In case you’re still not sure, there’s a clear seed site level in front of the hopper, so you can keep your eye on it.

Featuring revolutionary SeedProfi controller and metering, it’s now faster than ever to get stuck in. Simply hook it up, select a program and get to drilling.

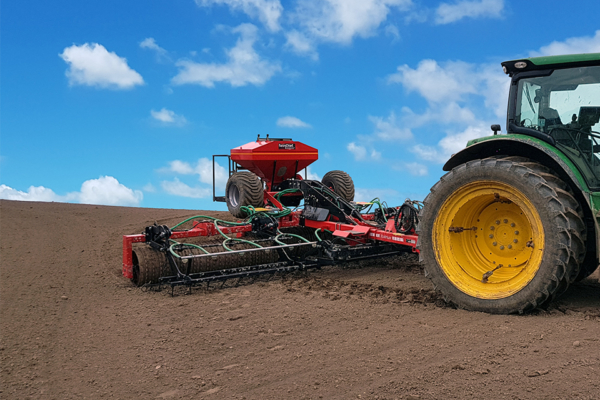

Options include front levelling paddles or chain harrows for greater cultivation or seed-to-soil contact.

Now you can have both. Combine FarmChief’s front levelling paddles with chain harrows for the ultimate level, harrow, sow and roll machine.

Explore the Rollmax Integra Roller Drill

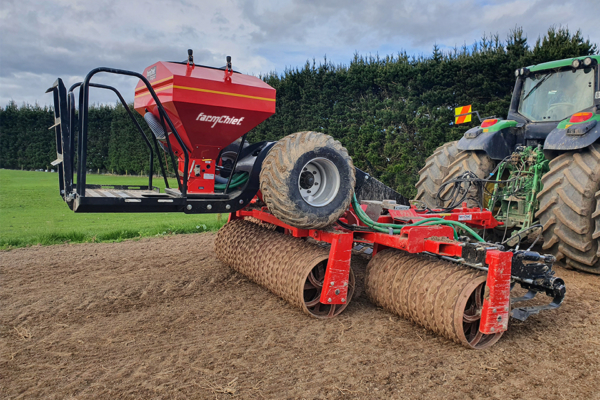

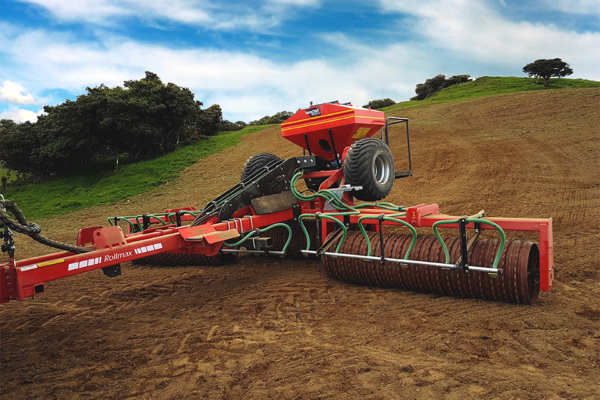

FarmChief Rollmax 430 Roller with Levelling Paddles and 850 litre Airseeder also known as a Roller Drill or Roller Airseeder Drill

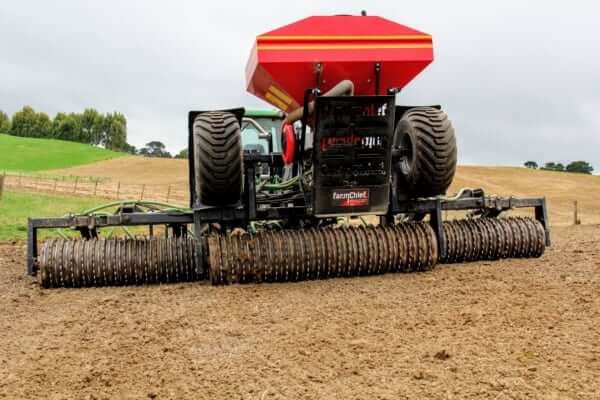

Rollmot with airseeder | Roller Seed Drill | Roller Seeder | Seed Drill | FarmChief

1 / 9

Market Leading Strength

Unrelenting high performance.

Choose the FarmChief Rollmax Roller for excellent, reliable results field-after-field, season-after-season.

FarmChief Rollmax Folding Cultivation Roller

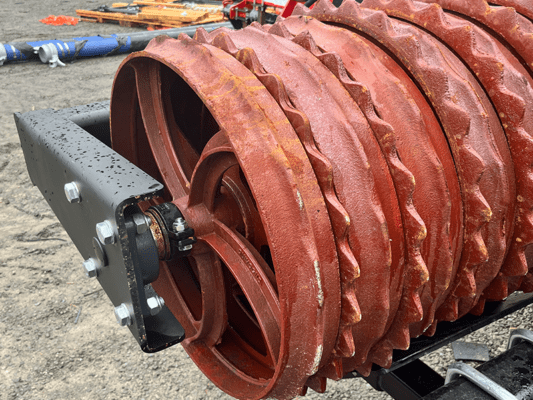

70mm Axle: Largest on the market

The 70mm HD breaker ring axle adds weight and stiffness right where the stress is greatest. Smaller axles snap, costing you repairs and time; this one lets you work faster in tougher ground. It's strong enough to need no centre bearing on each wing, for better coverage and fewer parts to break or maintain.

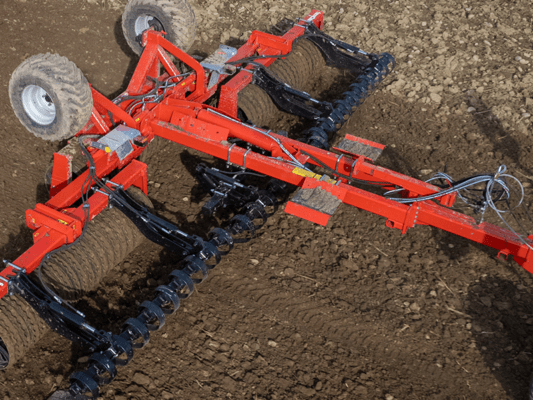

Twin Beam Drawbar: Full length strength

The twin beam drawbar and chassis runs the full length of the machine, carrying the HD wings and large rings. The result is harder, faster work in tough conditions and a stable fold every time.

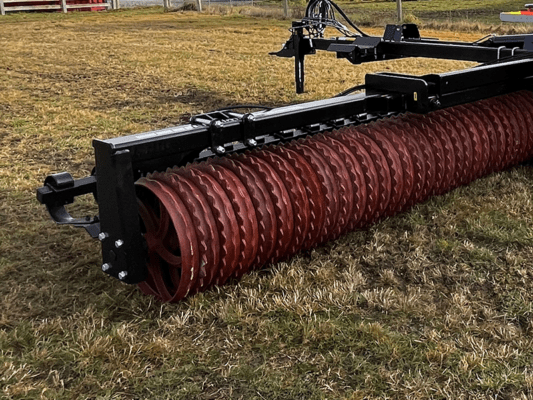

620mm Rings: Backed for 6 years

Large five-spoke webbed Cambridge and breaker rings, chosen for strength across all New Zealand conditions and backed by a six-year warranty. Scalloping prevents capping, and independent breaker rings stop blocking in wet, sticky ground.

FarmChief Machinery Rollmax Cultivation Roller

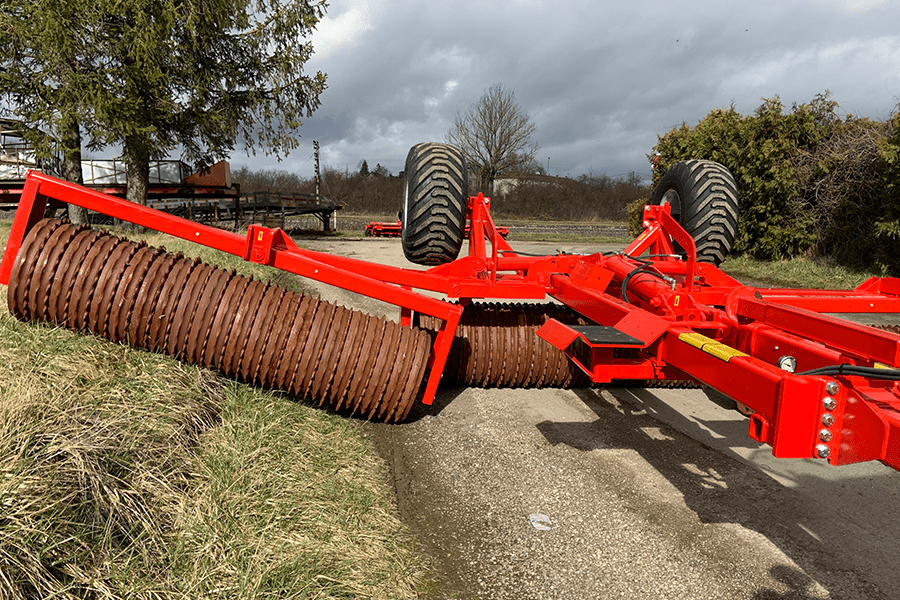

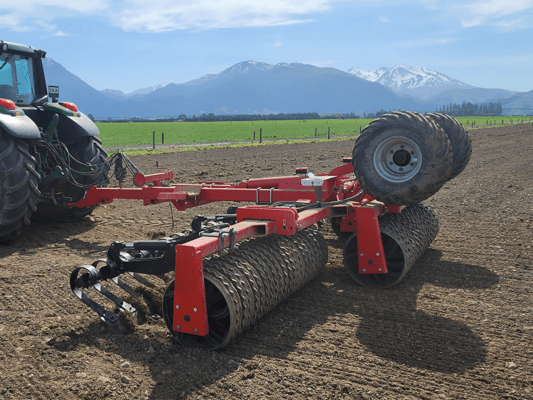

Dual Pivoting Wings

Each wing pivots at the centre of the roller, like standard rollers, plus a second pivot mid-wing. That keeps ground pressure even and stops bouncing, so the Rollmax flows through contours and you can work faster.

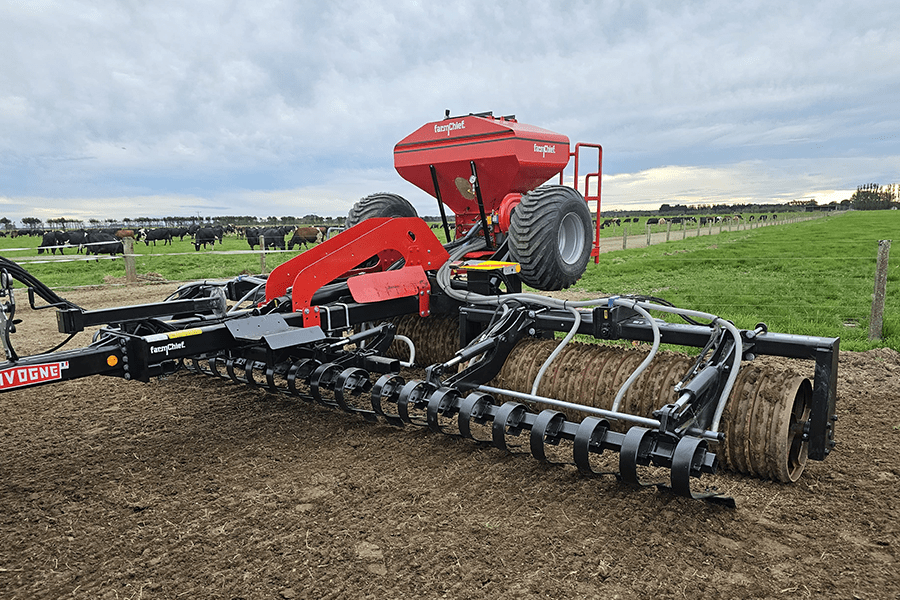

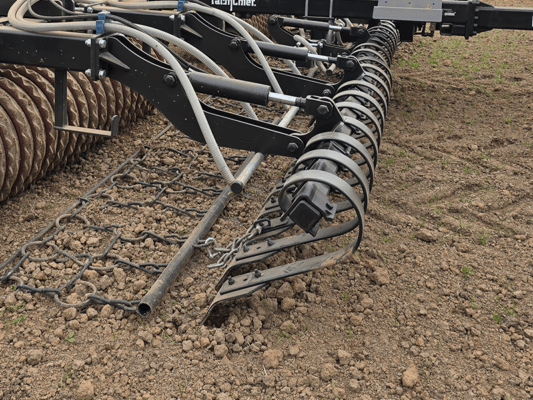

Hydraulic Levelling Paddles

An optional extra but a common addition to the majority of FarmChief rollers is the hydraulic front levelling paddles, perfect for dealing with larger clods and smoothing uneven ground, whilst reducing the passes needed to nail the finish.

Dual ram control

Each section features dual hydraulic ram control and specifically designed, wide, hard-wearing springs to keep up with the tough work of the roller. The dual rams are twice as effective at carrying the soil as single-ram models, producing more consistent, level finish.

Hydraulic sync

Every section of paddles is synchronised so all sections work together as one and produce a consistent finish across the width of the roller.

Incremental ram sizes

Notably, the hydraulic rams feature an incremental size increase as they move further away from the frame. This maintains even oil pressure and control across the full width of the machine for a consistent finish.

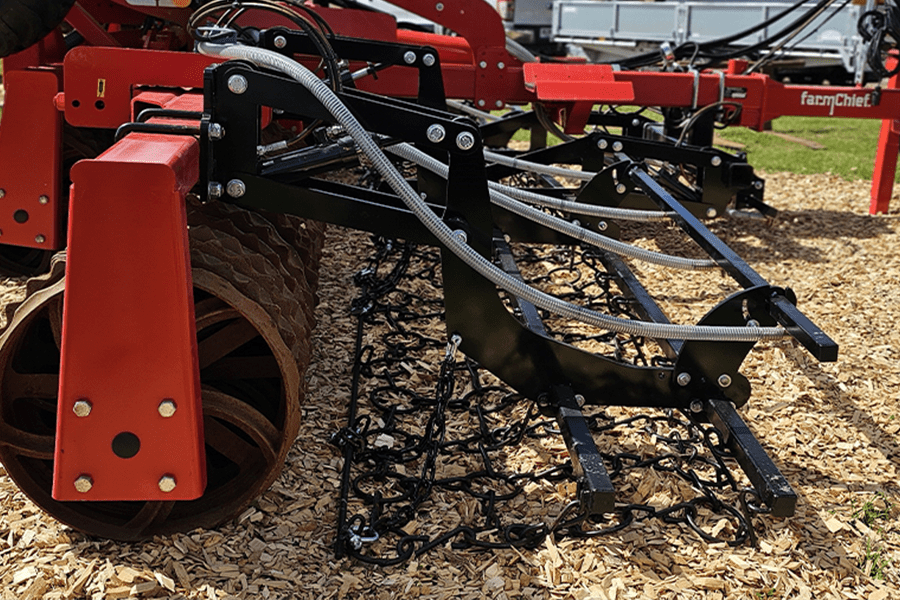

Intense Four Row Chain Harrows

Providing a balanced combination of intense working rates and delicate tilth handling, the FarmChief Intense Four Row Chain Harrows are an excellent choice for producing a fine finish and spreading a fine tilth of residue to cover the entire seedbed.

Larger and longer than other chain harrow solutions on the market, the Intense Chain Harrows round out the premium solution offered by the Rollmax Roller Drill.

Specialised VCR Contour Following Technology

More contact with the soil means a better finish and a greater strike for optimum crops

Adding to Rollmax’s credibility as a high-performance implement is the addition of VCR Contour Following Technology. By adding an additional cushion of air to the free-floating hydraulic rams of each wing, the operator can adjust the downward pressure each wing exerts on the ground.

Rather than relying purely on the (significant) weight of the roller, greater control of the finish can be achieved.

SeedProfi Monitoring Technology

Unrelenting accuracy, field after field.

The latest addition to the powerful Rollmax Roller Drill is the SeedProfi Airseeder, chosen for its ability to deliver consistent, measurable results across every type of seed, terrain and season.

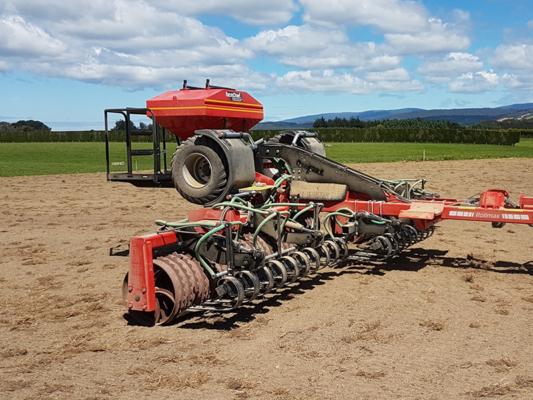

Radar Groundspeed Monitoring

Your rate: locked in. Wheel sensors slip on changing ground, giving false readings and poor dosing. SeedProfi's radar sensor reads true ground speed in real time through the tractor's 7-pin plug, or can be mounted on the implement.

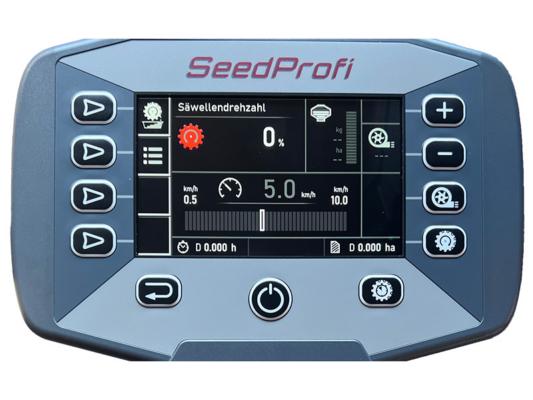

SeedProfi Monitor

Full control from the cab. A 5-inch colour display shows seeding rate, ground speed, fan status and real-time warnings. Calibration takes one button and five minutes. Simple enough for anyone to run.

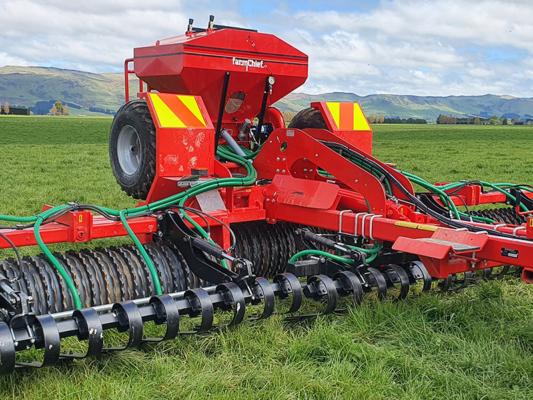

High Performing Delivery

The tapered hopper eliminates bridging, a common and frustrating fault on competing machines. Hydraulic fans push strong, consistent airflow through every outlet, while a clear sight panel and continuous level monitoring mean you're never caught short mid-paddock.

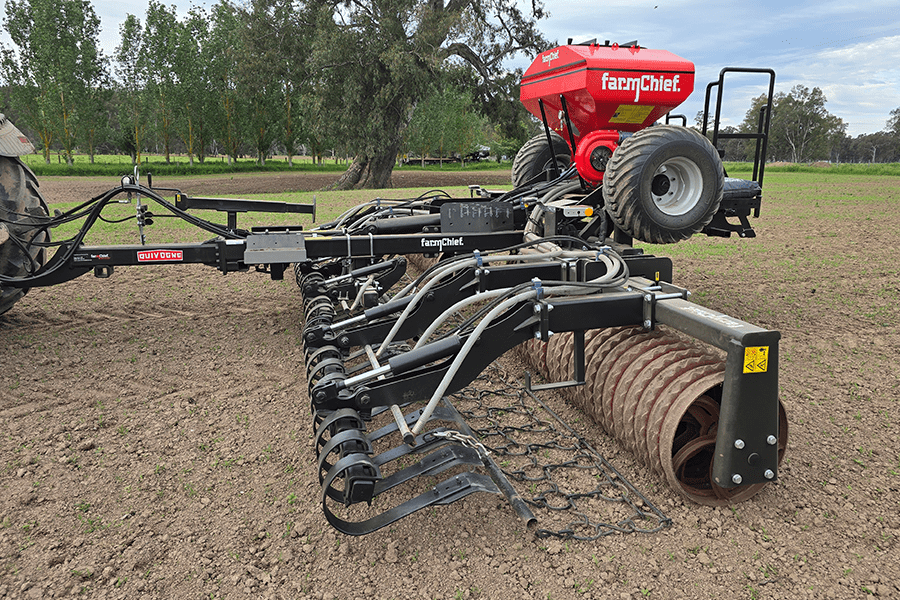

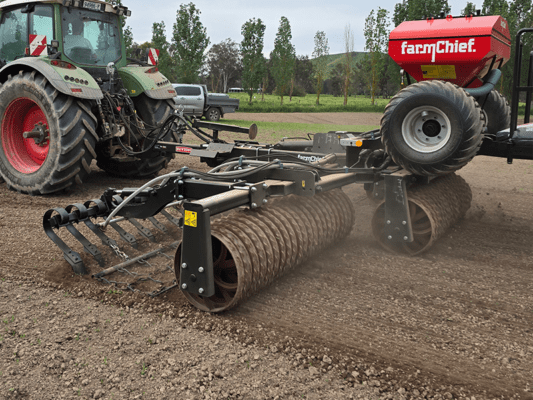

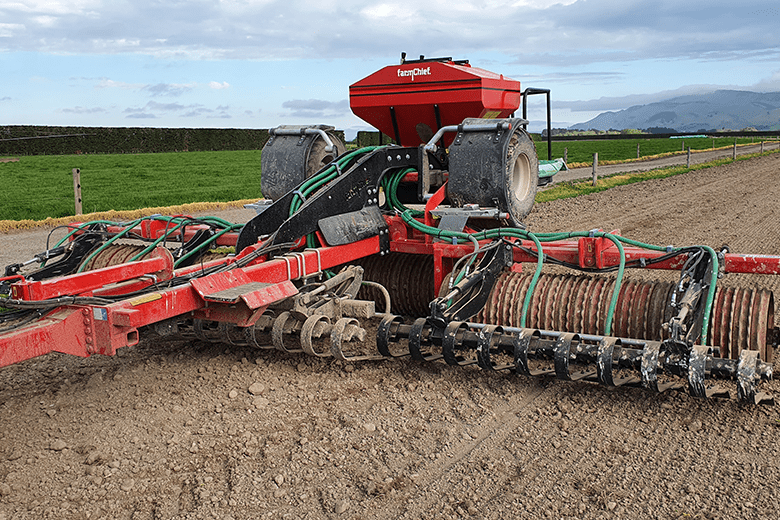

Rollmax Integra Roller Drill

Level. Sow. Harrow. Roll. All with one machine, in one pass.

FarmChief Machinery has combined the cultivating power of the front levelling paddles with the precision and finish of chain harrows for a New Zealand first: The Rollmax Integra Roller Drill.

Designed to be the most versatile roller drill out there, the Rollmax Integra can also be use purely as a roller, with or without the paddles or harrows, making it your one stop machine for finishing cultivation and roller drilling.

Level

Clods down, hollows filled. Hydraulic front paddles knock down clods and ridges, fill hollows and level primary cultivation ahead of the rings. Staggered ram sizes keep pressure even across the width, giving you complete, accurate control.

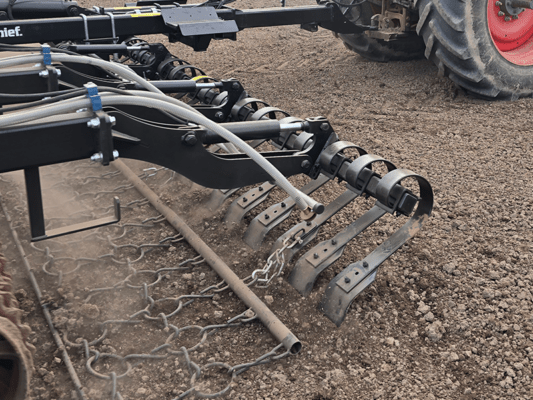

Sow

Seed right where it counts. Seed drops deliberately and directly behind the paddles and ahead of the harrows for excellent seed-to-soil contact. The straight 12-outlet, hydraulically driven SeedProfi airseeder spreads it evenly across the full width.

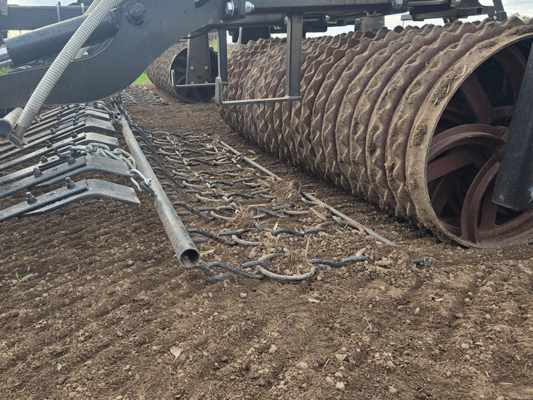

Harrow

A fine, even finish. Intense two-row chain harrows cover the seed, spread residue across the seedbed, break down clods and feather out paddle marks.

Roll

Firm seedbed, fast strike. 620mm rings with a 6-year warranty, the market's largest axle (70mm) and a heavy-duty chassis press seed firmly into the ground for a fast, even strike and healthy crops.

Technical Specifications

Model

Working width

Airseeder capacity

Ring diameter

HP Required

450

4.50m

200ltr - 850ltr

620mm

70+

530

5.30m

200ltr - 850ltr

620mm

80+

630

6.30m

200ltr - 850ltr

620mm

90+

730

7.30m

200ltr - 850ltr

620mm

110+

830

8.30m

200ltr - 850ltr

620mm

120+

950

9.50m

200ltr - 850ltr

620mm

140+

Get a free consultation and demo

Request a Demo

Testimonials

Campbell Sommerville from Mt Somers in Canterbury talks to FarmChief about his recent purchase of the FarmChief 6.3m Rollmax Folding Cultivation Roller

Campbell Sommerville | 6.3m Rollmax Testimonial

“The accuracy of the seeder is unbelievable so far in everything I’ve done – right down to a cupful of seed. And it’s easy to calibrate.”

He also had high praise for FarmChief’s service. “The back-up is brilliant, and the help in setting it up.”
