Folding Offset Discs

FarmChief’s Quivogne primary cultivation discs can tackle tough country. Chewing up virgin land, out of stubble, or finishing pre-worked ground there’re no problems at all. They’re also engineered for honest, down-to-earth strength so they won’t let you or the farm down.

FarmChief Folding Offset Discs

Features and Benefits

FarmChief’s offset discs & cultivating discs cut through the soil, and the competition. Heavy, hardy and delivering a good weight per blade, they’ll go where no plough can. Crop residue can be incorporated and the ground effectively opened up to the air. Even in snow tussock, this hard-worker can be backed to do a good job. Adjustable from the tractor seat, this makes tough-going easy and is great for undulating ground. The finish is level and it’s quicker than ploughing, getting you back into production faster. With sizes varying from 2.7m up to 6m (available on request) they have the range to cover all your requirements. What makes it low maintenance is square, high tensile disc axles on heavy duty triple sealed roller bearings, making these discs a walk in the park. Currently, we have well over 200 units operating in some of New Zealand’s toughest country.

Gallery

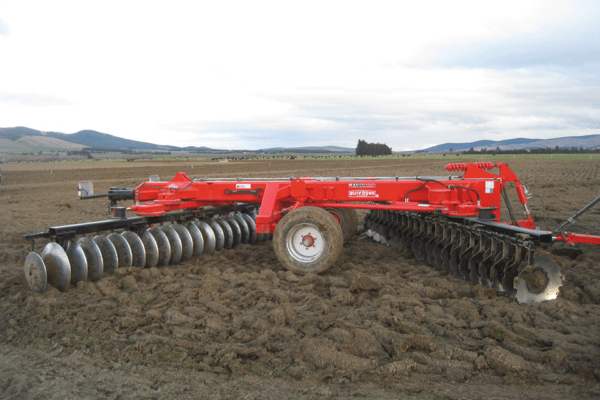

FarmChief Folding Offset Discs

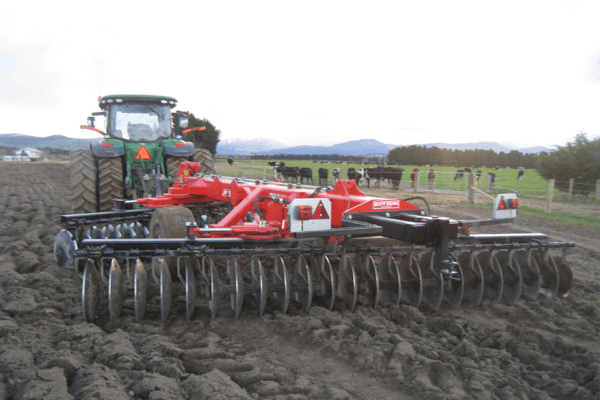

FarmChief Folding Offset Discs

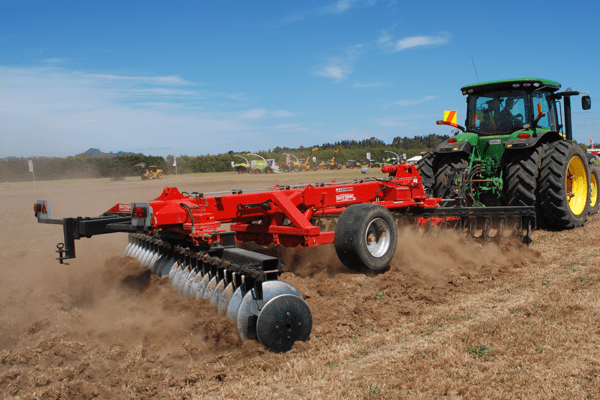

FarmChief Folding Offset Discs

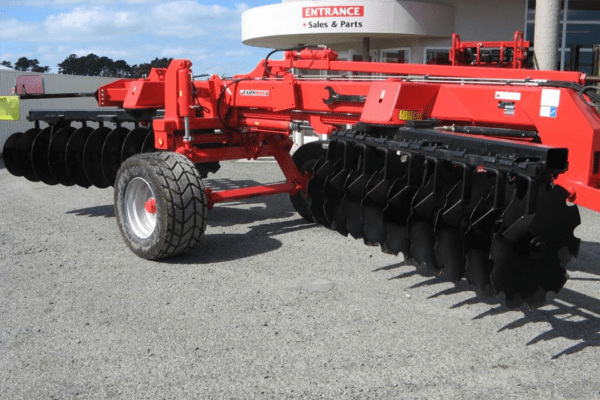

FarmChief Folding Offset Discs

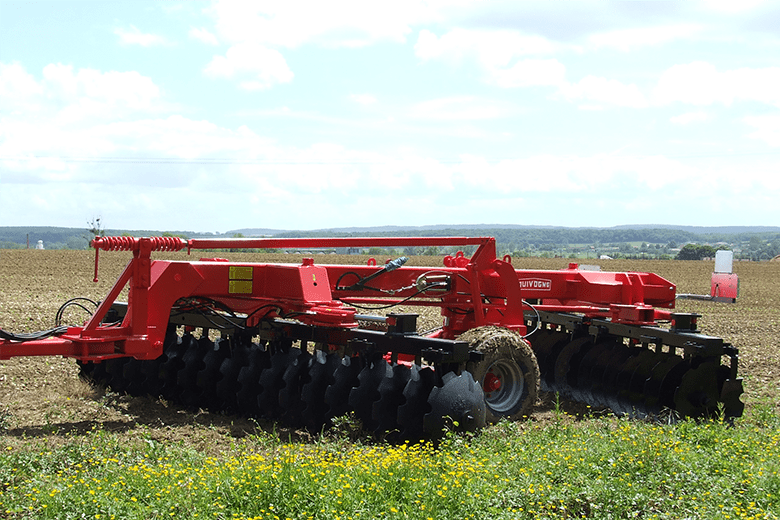

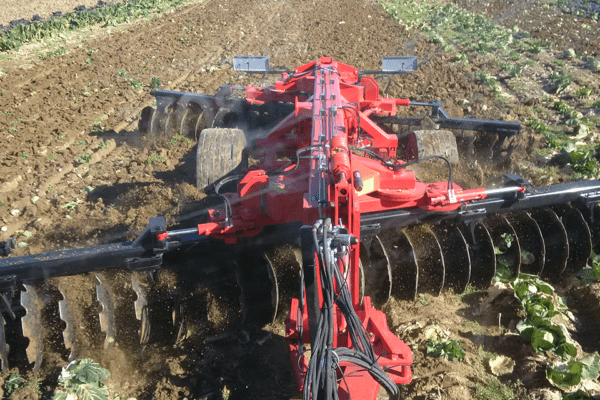

FarmChief Folding Offset Discs
1 / 5

Technical Specifications

Model

Working width

Weight approx.

No. of discs

Disc size

Disc spacing

Cut

HP Required

SOL V 28-66-23

3.20m

3890kg

28

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

110+

SOL V 32-66-23

3.60m

4050kg

32

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

120+

SOL V 36-66-23

4.00m

4300kg

36

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

130+

Model

Working width

Weight approx.

No. of discs

Disc size

Disc spacing

Cut

HP Required

MONO V 32-66-23

3.60m

4160kg

32

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

120+

MONO V 36-66-23

4.00m

4420kg

36

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

130+

MONO V 40-66-23

4.40m

4680kg

40

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

140+

MONO V 44-66-23

4.90m

4850kg

44

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

150+

MONO V 48-66-23

5.40m

5190kg

48

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

160+

Get a free consultation and demo



Testimonials

Brendon says the rocky terrain is hard on gear but the discs have Brendon’s endorsement.

“They’re really, really good – they’re robust and simple to use. They were pretty competitively priced too.

They dig in well and leave a nice, level finish. We’re getting a good depth out of them.”

APL Offset Discs | Customer Testimonial – Brendon Hargest
