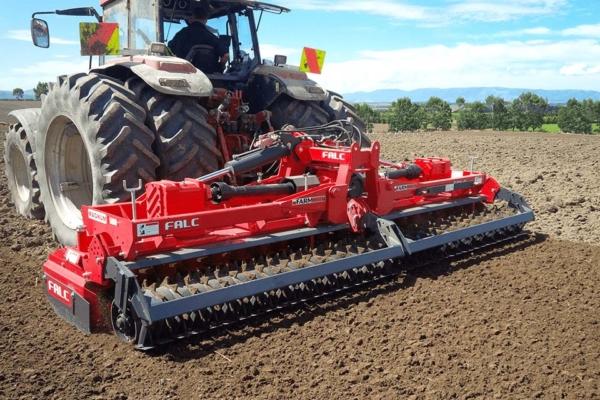

Folding Power Harrows

Designed for large Horse power tractors, and big jobs, these highly spec’d folding power harrows are available in widths of up to an impressive 8 metres, making them ideal for contractors and large scale farms with a small window of opportunity.

Gallery

Features and Benefits

They say, size isn’t everything, but modern cultivation demands the ability to cover big areas of ground quickly, as well as effectively. The Falc Folding Power Harrows are manufactured for exactly that task, ranging from the Falc Kratos 4000/P to the Super Magnum 8000/P. In addition to the taper roller bearings, precision Italian manufacturing, proven build strength and outstanding performance of the standard Falc Power Harrows, the folding harrows have some extra, unique features; a wide double chassis frame, and pivot points, supporting the loads that come from the extra wide width. While it’s definitely a commanding beast, Falc haven’t forgotten the needs for consistency. Just one example of their eye for detail is, to ensure uniform cultivation, and an even smooth finish over the full working width of the folding unit, the centre tines overlap by 15mm. The round tine carriers with 18mm x 320mm HD tines features a single quick change pin for fast easy replacement.

Technical Specifications

Model

Working width

Weight approx.

No. of rotors

Rotor diameter

PTO

HP Required

K/P 4000

4.05m

2790kg

16

550mm

1000rpm

140+

K/P 5000

5.04m

3210kg

20

550mm

1000rpm

140+

K/P 6000

6.02m

3690kg

24

550mm

1000rpm

140+

Model

Working width

Weight approx.

No. of rotos

Rotor diameter

PTO

HP Required

M/P 5000

5.04m

3210kg

20

550mm

1000rpm

140+

M/P 6000

6.02m

3690kg

24

550mm

1000rpm

140+

Model

Working width

Weight approx.

No. of rotors

Rotor diameter

PTO

HP required

SM/P 5000

5.04m

3650kg

20

550mm

1000rpm

160+

SM/P 6000

6.02m

4570kg

24

550mm

1000rpm

170+

SM/P 7000

7.01m

4920kg

28

550mm

1000rpm

170+

SM/P 8000

8.01m

5500kg

32

550mm

1000rpm

170+

Testimonials

Grant’s view

Grant and Nikki Kearins have a 230 ha dairy farm at Kairanga, on the outskirts of Palmerston North on flat, heavy to medium country.

Grant said he’d been looking around for some power harrows and thought FALC had a lot of good features. That initial impression has been confirmed by their performance. “It goes really well. The big diameter packer roller just keeps working through.”The 5 metre power harrows are currently used across around 50 hectares of the farm. “I had the horse power, so I decided to go for it. It certainly covers the ground.” “It seems well built and reliable.  All around, a nice, reliable machine.”

- Power Harrow

Woodys View

Listen to Woody from Kinsale Contracting in Glentunnel as he tells us about his FarmChief Falc Magnum 3500 Power Harrow he purchased off FarmChief 4years ago.. read more

- Falc Magnum 3500 Power Harrow

Features

Lifetime Durability

This FarmChief machine is both robust and heavy duty which has been tried and tested in New Zealand conditions since 1996.

Quick release tines

Tines are quickly changed by pulling two pins protected by a stone guard and a heavy-duty lynch pin.

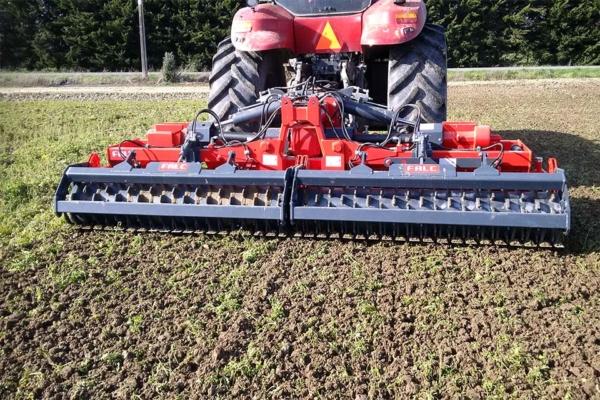

Enhanced Germination

It has been proven, the two center tines overlapping gives optimum soil disturbance. Heavy duty tines (330x18mm) fitted to the heavy-duty rotor and the two tapper roller bearings submerged in a semi fluid grease bed.

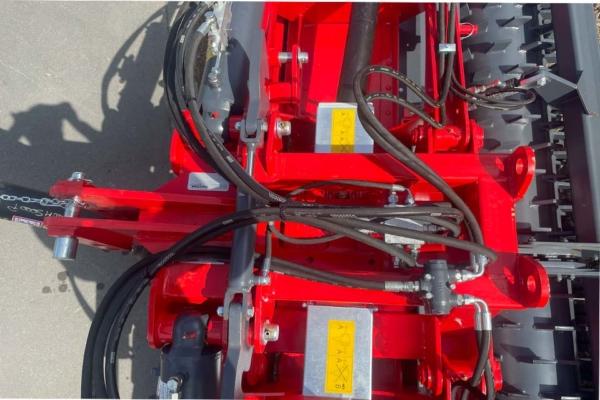

Oil Cooling

The custom, in-built oil cooling system ensures safety and longevity of the machine and peace of mind for the operator. Work continuously knowing that the strip-till is running at a temperature that is optimum for best performance.

FarmChief Implement Options

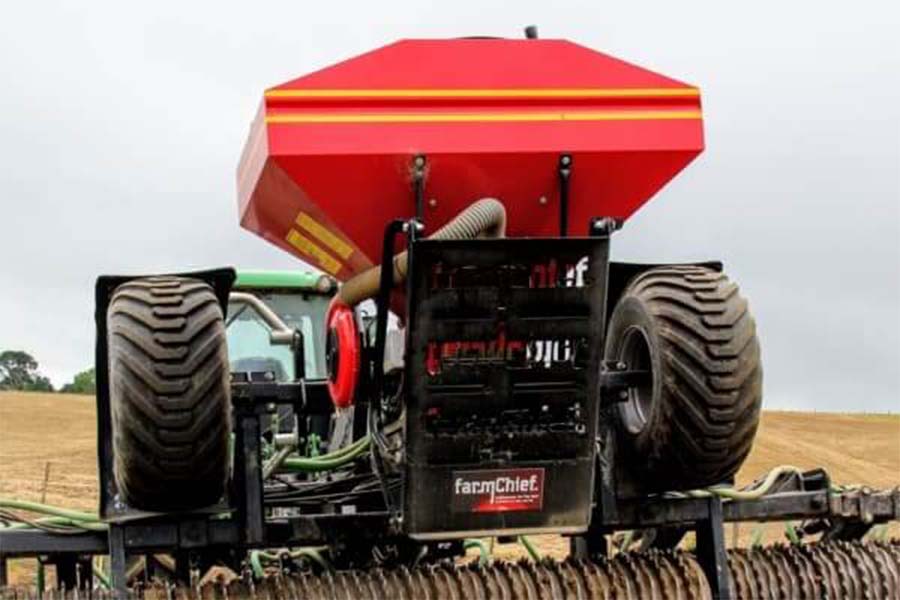

FarmChief Airseeders
