Moore Uni-Drill: Single Disc Drill

The original one-pass system now with SeedProfi technology

New Zealand’s most efficient and versatile single-disc direct drill. Achieve slitting, harrowing, sowing and rolling all in one pass, with complete in-cab monitoring and control.

Download the Brochure

Download

Please enter your details to download the brochure.

    By filling out this form you agree to the terms of our Privacy Policy
    Talk to a specialist

    Time efficient, versatile and simple to calibrate and operate, the Moore Uni-Drill is ideal for oversowing, re-grassing existing pasture, drilling into cultivated ground or straight into stubble and other trashy conditions.

    With fewer moving parts than a triple disc drill and greater accuracy than traditional tine drills, the Uni-Drill is ideal for operators looking for an excellent high-performance all-rounder.

    The staggered, narrow row spacing (90mm or 125mm) allows for excellent trash clearance, whistly delivering thick, fast germination that discourages weed growth.

    Features include long-life tungsten carbide tipped coulters mounted on rubber duratorque suspension, rear prisma-style guttler roller producing the optimum seed-to-soil contact and high-speed, 700L hopper capable of sowing right down to the last cupful of any seed type.

    Gallery

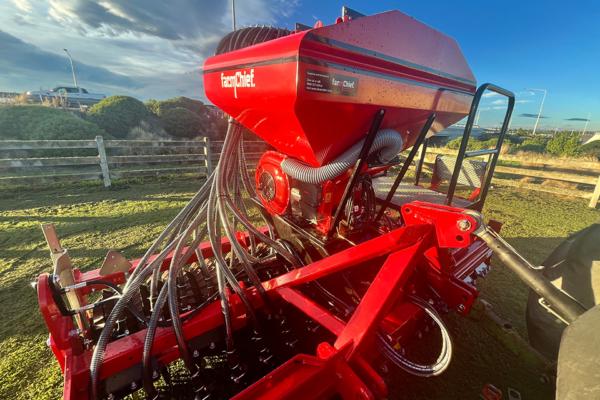

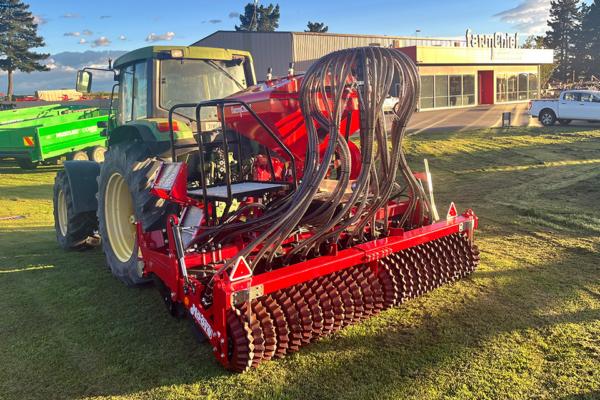

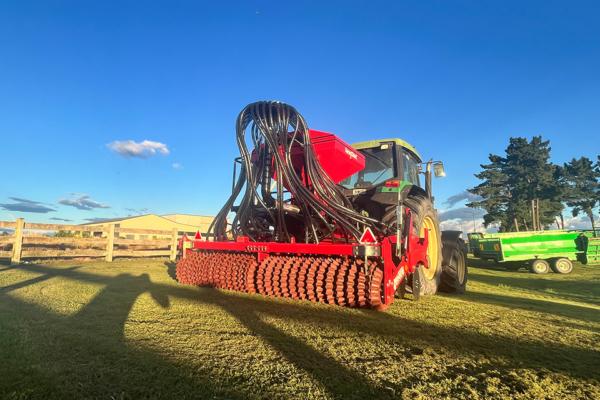

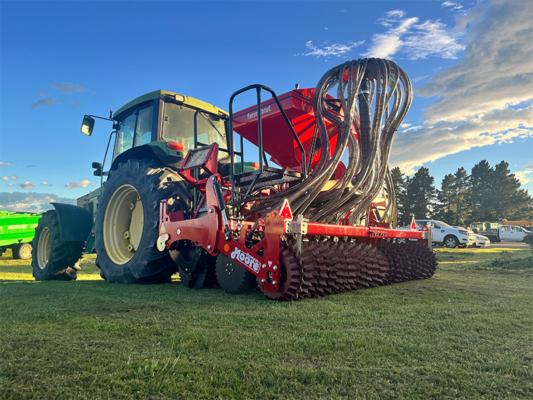

    FarmChief Machinery Moore Uni Drill Single Disc Direct Drill
    FarmChief Machinery Moore Uni Drill Single Disc Direct Drill
    FarmChief Machinery Moore Uni Drill Single Disc Direct Drill
    FarmChief Machinery Moore Uni Drill Single Disc Direct Drill
    FarmChief Machinery Moore Uni Drill Single Disc Direct Drill
    FarmChief Machinery Moore Uni Drill Single Disc Direct Drill
    1 / 6

    Features

    Narrow row spacing

    Narrow 90mm row spacing guarantees thick, fast crop establishment, weeds are put to bed, allowing for an excellent strike. There is also a spacing option of 125mm on a 24-row unit.

    Guttler Roller

    The Guttler packer roller is very unique, made up of two cast iron prisma rings, one 45Ø, the other 50Ø. The larger ring runs on the inner shoulder of the smaller ring creating a self cleaning action, which is great in sticky situations. The roller also has a smoothing effect, which is great for crop paddocks and gentle on pasture, leaving a neat finish.

    Disc Design

    Mounted on a five-degree angle, the 410x5mm disc blades, work along with the Tungsten carbide tipped coulter to ensure quick and accurate seed placement. The soil is sliced opened, seed is placed, followed by the rear Guttler roller that ensures even seed to soil contact.

    Metering Wheel

    Easy to use, mechanical metering wheel for accurate seed dispersal. Allows the operator to clearly see the seed being applied with a working speed up to 8km/h.

    Technical Specifications

    Model

    Working width

    Overall width

    No. of row units

    Row spacing

    Capacity

    HP Requirement

    24 Row Trailed

    2.9m

    3m

    24 Rows

    125mm

    750L

    110+

    32 Row Trailed

    2.9m

    3m

    32 Rows

    90mm

    750L

    110+

    24 Row Mounted (3PTL)

    2.9m

    3m

    24 Rows

    125mm

    750L

    100+

    32 Row Mounted (3PTL)

    2.9m

    3m

    32 Rows

    90mm

    750L

    100+

    SeedProfi Monitoring Technology

    Unrelenting accuracy, field after field.

    The latest addition to the simple, versatile Moore Uni Drill is the SeedProfi Airseeder, chosen for its ability to deliver consistent, measurable results across every type of seed, terrain and season.

    FarmChief Machinery Moore Uni Drill Single Disc Direct Drill

    Radar Groundspeed Monitoring

    Wheel monitoring can result in slipping and can be inaccurate on varying ground, meaning false readings and poor dosing. The SeedProfi airseeder uses a radar groundspeed sensor hooked directly into the tractor 7-pin plug to monitor real-time, actual ground speed. Optionally, a radar can be mounted on the implement itself. Whether you're climbing a hills in Southland or cruising Canterbury flats, your seeding rate stays locked in.
    FarmChief Machinery SeedProfi Airseeder

    SeedProfi Monitor

    The SeedProfi monitor delivers complete control straight to the cab. Featuring a 5-inch colour display, the operator can monitor seeding rates, ground speed, fan status and receive warnings in real time. Calibration is simple as pressing a button and takes only five minutes. It's so simple anyone can run it!
    FarmChief Machinery Moore Uni Drill Single Disc Direct Drill

    High Performing Delivery

    The tapered hopper design eliminates bridging - a common point in competing machines and a frustrating issue to resolve in the middle of a job. The SeedProfi's hydraulic fans deliver superior, consistent airflow through every outlet, and a clear sight panel in front of the hopper alongside continuous level monitoring from the monitor means you'll never be caught short mid-paddock.

    Get a free consultation and demo

    Customer Testimonials

    “The ability to highly control seeding rates is a priority for us, and we’ve been able to sow a variety of seeds through the airseeder and changer between them quickly, which is excellent.”

    Moore 32-Row Trailed Uni-Drill Testimonial

    “Todd brought the machine down and did a demo with it. Rob, a FarmChief service technician, was fantastic and his experience really showed – he got it all set up and running for us”

    David Mavor, Dairy Farmer, Canterbury | Moore Uni-Drill

    “We bought a roller that needed a tweak so the paddles worked better on the flat. They came out, looked at it and organised new parts. It was extremely good.”

    It’s a welcome change from the gear they have bought elsewhere: “FarmChief do far more than other outfits.”

    After Sales Service | Testimonial, Graeme Burnett, Dairy Farmer

    1 / 3
