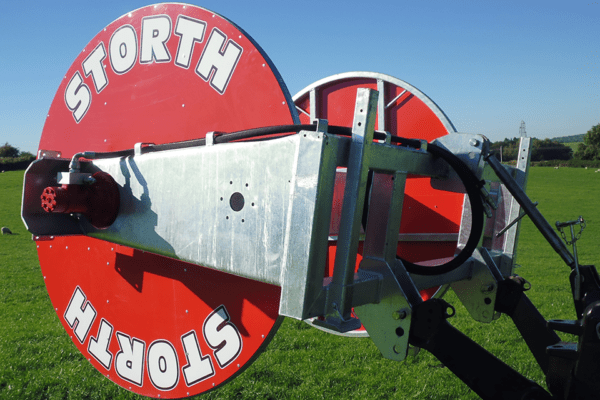

Storth Umbilical Bobbin Reeler

One of the biggest costs to your umbilical system is the hoses – ensuring the safe storage, transportation and application of this asset is an important contributor to any Umbilical System’s success.

FarmChief’s Bobbin Reelers are designed to facilitate the management of hoses for effective, efficient pumping of slurry to where ever it needs to be on the farm.

Talk to a specialist Download the brochure


Please enter your details to download the brochure.

    By filling out this form you agree to the terms of our Privacy Policy


    FarmChief Umbilical System Bobbin Reeler
    FarmChief Umbilical System Bobbin Reeler
    FarmChief Umbilical System Bobbin Reeler
    FarmChief Umbilical System Bobbin Reeler

    Features and Benefits

    Our range of bobbin reelers are built to suit both farmers and contractor.

    Choose to mount on the front or rear of the tractor for ultimate flexibility it the field, with single reelers providing up to 1000m of length, or combo with front and rear reelers for 2000m or working length

    The cleverly designed frame ensures maximum stability and strength and comes fully galvanized as standard. The heavy-duty hydraulic gearbox can handle whatever the conditions throw at it, with little-to-no maintenance required over its lifetime.

    Its compact design allows for easy visibility of the front linkage, improved manoeuvrability when working, easier handling of the hose, and easy storage options when not in use.

    • Fully galvanised corrosion protection
    • Safe dual hydraulic relief valve protection
    • Heavy-duty engineered drive gears positioned both ends of bobbin
    • Strong 55mm bobbin bearing
    • Low maintenance robust gearbox drive

    FarmChief provides the full spectrum of umbilical parts and accessories for your solution. Find the rest of our range here.

    Technical Specifications







    Contractor Bobbin 1000


    HD 'A' Frame




    Parts and Options

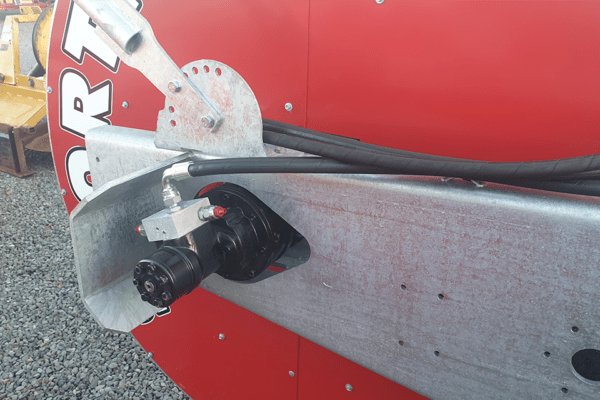

    FarmChief Bobbin Reeler Hydraulic Drive

    Directly Hydraulically Driven

    The hydraulic gearbox makes for super easy unrolling and re-rolling, with up to 1000m of hose carrying capacity

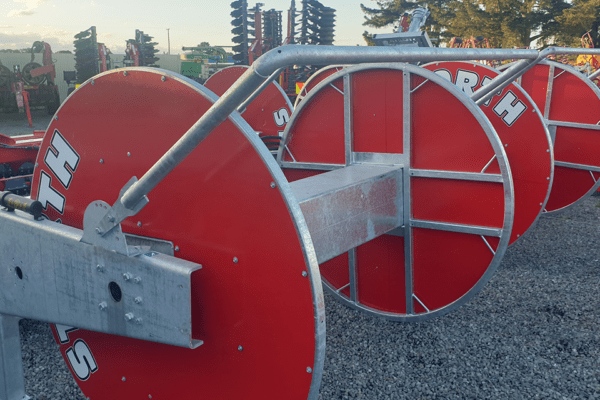

    FarmChief Bobbin Reeler Bonnet Guard

    Bonnet Guard

    Protect your investment and prevent dings and breakages whilst working with several implements or in tight spots.
    FarmChief Umbilical System Bobbin Reeler

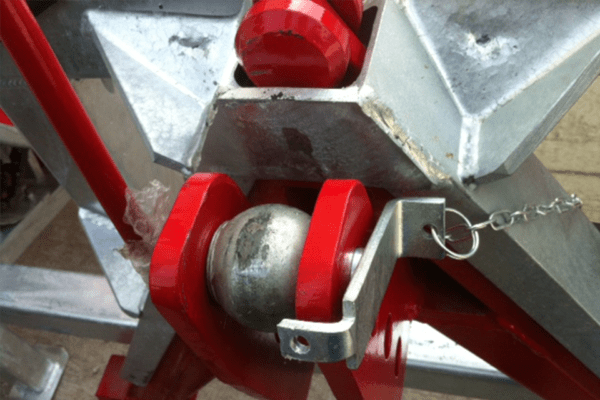

    Heavy Duty A Frame Quick Hitch

    Easy load, heavy-duty A-Frame mount. The perfect option when piggybacking with the reeler and applicator.
    FarmChief Umbilical System Bobbin Reeler

    Fully Galvanised

    Fully galvanised with powder-coated sides ensuring long-life and high-performance in trying conditions.


    Tony’s View.

    Fisken Contracting, based in Gore, can tackle fairly much any job there is. From lane maintenance to cartage, baling to logging. Tony Fisken backs umbilical slurry systems because of their efficiency and the fact that they’ll work at high volumes and in conditions where slurry tankers simply can’t. “There’s little or no compaction of laneways or paddocks and it’s a very effective way of moving large amounts of nutrient.” Tony says the system is especially good on softer soils, (and on the shoulder seasons) where tankers could get stuck, as there are only the hoses to be placed down and reeled in. His business works with umbilical on distances up to, and even exceeding 2kms, which, Tony says, accommodates most properties. Some farmers find it so effective they choose not to use their own systems at all. “They just give us a call.”

    - Storth Umbilical

    Profiline Slurry Tanker

    Colin's view

    Colin Molloy runs a 420-sow piggery, along with 130 hectares of cropping and livestock, in Sheffield, Canterbury with two large effluent ponds.
    Although it was the advanced hydraulics that first drew Colin to his Veenhuis Profiline 16600 litre Slurry Tanker, he is also acutely aware of the need to successfully manage environmental issues and soil fertility. The tanker enables him to recycle the nutrient-dense manure and reduce odour in one go.
    His tanker injects the effluent back into the soil providing a great start for barley, wheat, and pasture and removing the nuisance normally associated with conventional “broadcast” systems.

    - Veenhuis Slurry Tankers

    FarmChief Umbilical System Options

    FarmChief Effluent Dribble Bar

    FarmChief Umbilical Dribble Bar

    Needing something to ensure a precise application of slurry while preventing run-off and nutrient loss? FarmChief Contractor Dribble Bars are the answer.

    FarmChief Dribble Bars | View Now

    FarmChief Effluent Chopper Pump

    FarmChief Umbilical Chopper Pump

    Priming umbilical systems or moving your slurry, our range of robust, long-life pumps will see the job done right, every time.

    FarmChief Chopper Pump | View Now

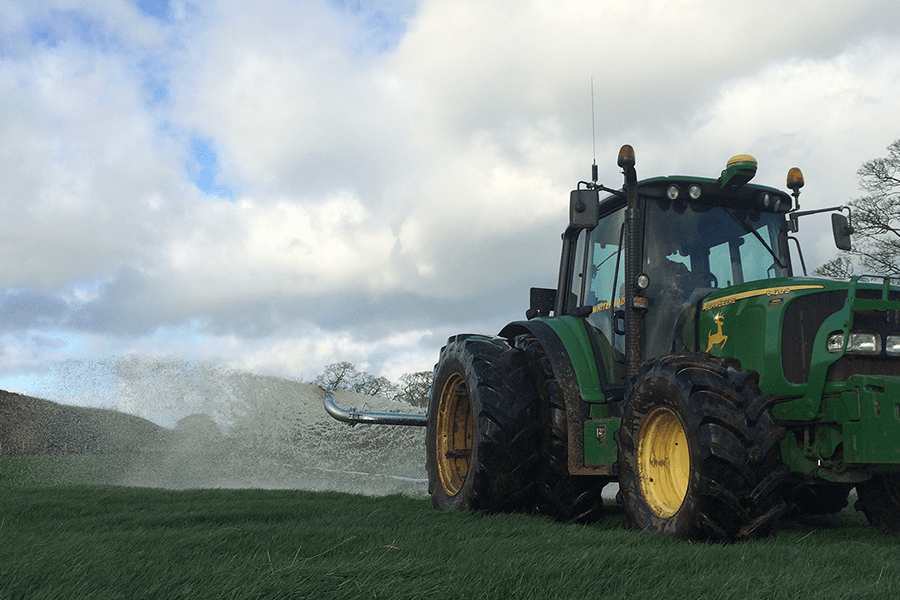

    FarmChief Effluent Spreader Bar

    FarmChief Umbilical Twin Spreader Bar

    One of the simplest effluent application methods around. Our twin spreader bars have a 12m spreading width and have been engineered with our trailed reelers in mind.

    FarmChief Twin Spreader Bar | View Now
