Rollmax Folding Cultivation Rollers

Top-of-the-range, high-performance rollers designed for farmers and contractors looking to extend their rolling capacity whilst increasing performance and versatility at the same time.

Their highly-engineered, thoughtful design eliminates the pain points of past generations of rollers, resulting in a hard-working, results-driven implement that will deliver results long into the future.

When soil moisture is at a premium, their high-pressure point is the perfect way to ensure seed germination, keep the soil compact, and cover the seeds with fine tilth. The heaviest and toughest rollers on the market, they maintain an even weight distribution ensuring stability on uneven ground.

Download the brochure

Download

Please enter your details to download the brochure.

    By filling out this form you agree to the terms of our Privacy Policy
    Contact an expert
    FarmChief - Rollmot with Airseeder cultivator | Cultivation Rollers | FarmChief

    High-yielding, successful crops are the goal for farmers and contractors, year in and year out and crucial to these outcomes is a level seedbed with a fine tilth, set up for sowing or drilling. This means every operator needs to be able to call upon a high-performance, reliable implement to get the job done.

    The FarmChief Rollmax Folding Cultivation Roller is just that machine. It has been specifically designed to deliver the optimum seed-to-soil contact, a fine, fresh-level tilth and a compact seedbed time and time again in New Zealand conditions.

    The standout in performance is our market-leading, heavy-duty 70mm breaker ring axle. This is the crux of the roller and stands above any other options currently on the market. Enjoy less cracking or warping, less time in the garage, and a harder working machine. With a select range of outstanding 620mm breaker rings (all with a five-year warranty), you’re sure to get the job done right, every time.

    The twin-bar, chassis is built from high-gauge steel tubing, features ultra-engineered and double-reinforced pivot points, and requires little-to-no ongoing maintenance, each wing features very few grease points, allowing fast and simple maintenance in the field.

    The FarmChief Rollmax range offers folding rollers up to 10.5m wide, making for an incredibly efficient machine. Despite this, you do not need to compromise on transport width: each Rollmax has a transport width of only 2.5m, perfect for even the narrowest gate or track. You’ll enjoy not needing a guide vehicle when on the road and extend the life of your roller by conveniently storing it in a shed.

    Made with the varied NZ conditions in mind, FarmChief folding rollers utilise centre-pivot wings to not only deliver superb contour following in undulating terrain, but they benefit from the strength and resilience being balanced in the middle of the wing, resulting in a stronger machine.

    What’s more, the FarmChief range of rollers works wider than other rollers, with smaller, inset outer bearings allowing the rings to work right up to the fence line, giving you more bang for the buck in the working area.

    Rollmax Standout Features

    FarmChief Machinery Rollmax Folding Cultivation Roller

    Heavy Duty, Robust Engineering

    Put simply, this roller will not let you down. Built tough to work tough, the robust build will take on everything you can throw at it, season after season, and still come back asking for more.

    FarmChief Machinery Rollmax Folding Cultivation Roller

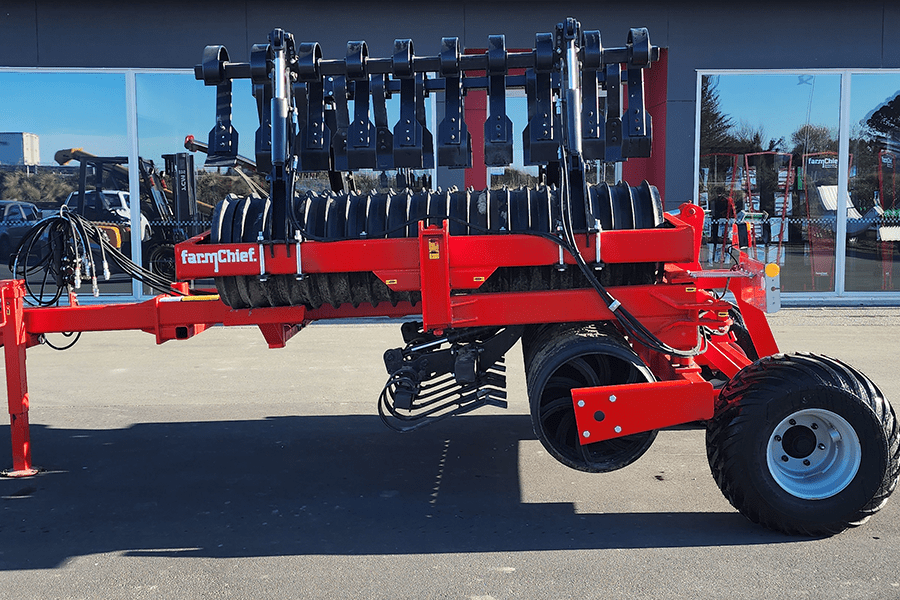

    Dynamic Centre Pivot Wings

    Thoughtfully designed with the end user in mind, the FarmChief Foling Rollers have features that make them easy to use and maintain.

    The dual hydraulic sync valves allow both wings to open simultaneously, maintaining the balance of the implement, reducing the twisting on the chassis and improving its stability on uneven ground.

    Enjoy expert contour following thanks to the dynamic centre pivot wings, following uneven ground and producing a consistent finish. Being centre-pivoting, the pivot points are highly reinforced, making for more resilient wing.

    Additionally, the Rollmax has easy-access greasable pivot points for simple maintenance while in the field.



    FarmChief Machinery Rollmax Folding Cultivation Roller

    Hydraulic Rear Transport Wheels

    Coming with hydraulic rear transport wheels as standard, the Rollmax is the contractor’s dream, making it simple to tow and ideal for transport while maintaining the life of the roller rings. Its narrow transport width of all FarmChief Folding Rollers (2.5m) means they are a convenient choice for those moving between multiple locations.

    FarmChief Machinery Rollmax Folding Cultivation Roller

    Hydraulic Front Levelling Paddles

    An optional extra but a common addition to the majority of FarmChief rollers is the hydraulic front levelling paddles. With dual hydraulic ram control and specifically designed wide, hard-wearing springs to keep up with the tough work of the roller, these turn the simple roller into a cultivation tool in its own right; perfect for dealing with larger clods and smoothing uneven ground.

    Gallery

    Roller with airseeder | Cultivation Rollers | FarmChief

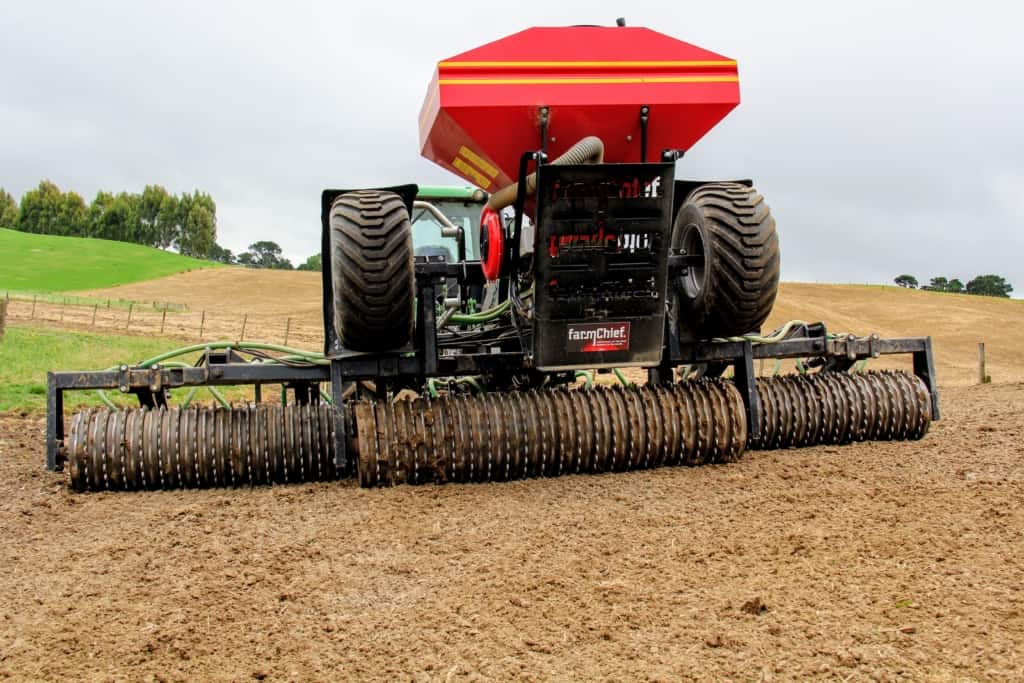

    Rollmot roller with airseeder | Cultivation Rollers | FarmChief
    Rollmot roller | Cultivation Rollers | FarmChief
    FarmChief Machinery Rollmax Folding Cultivation Roller

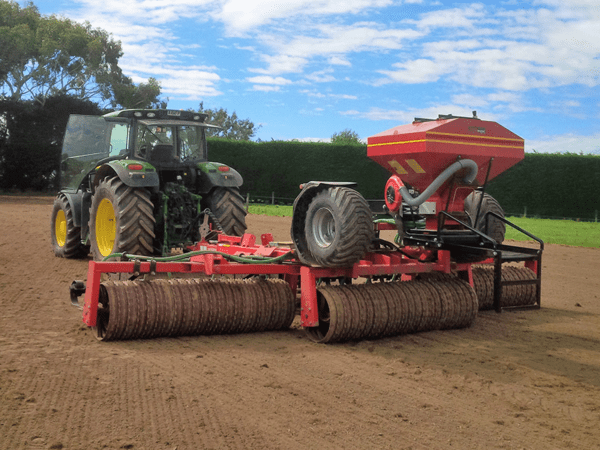

    Market-Leading Roller Axle

    It’s worth reiterating the strength and longevity of the FarmChief rollers axle. It removes any consideration of ongoing maintenance costs or lost productivity, whilst allowing the roller to work harder in tougher conditions.
    FarmChief Machinery Rollmax Folding Cultivation Roller

    AirSeeder

    Transform your roller into a roller drill with the easy to attach and high-performance FarmChief AirSeeder. Featuring sowing rates from 0.5kg/ha and sizes from 210L, our range of airseeders are the ultimate add-on for the FarmChief rollers.
    FarmChief Machinery Rollmax Folding Cultivation Roller

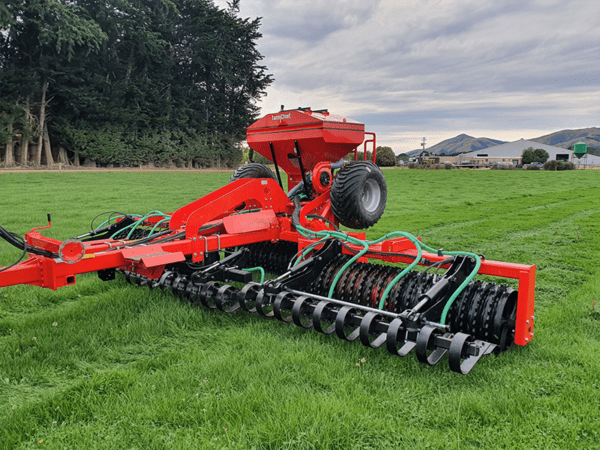

    Paddles & Harrows

    Paddles or chain harrows are an easy and common method of upgrading rollers, especially when dealing with rougher ground or when wanting to improve seed-to-soil contact when rolling and airseeding.
    FarmChief Machinery Rollmax Folding Cultivation Roller

    Rear Drawbar

    Another standout add-on, a rear drawbar extends the versatility of the FarmChief roller, allowing for the time-proven roll-seed-roll solution.

    Technical Specifications

    Model

    Working width

    Weight approx.

    Transport width

    Roller ring diametre

    Ring Type

    Axle diameter

    HP Required

    450

    4.50m

    3100kg

    2.50m

    620mm

    Cambridge waved and breaker

    70mm axle

    70+

    530

    5.30m

    3400kg

    2.50m

    620mm

    Cambridge waved and breaker

    70mm axle

    80+

    630

    6.30m

    3735kg

    2.50m

    620mm

    Cambridge waved and breaker

    70mm axle

    90+

    730

    7.30m

    4370kg

    2.50m

    620mm

    Cambridge waved and breaker

    70mm axle

    110+

    830

    8.30m

    4905

    2.50m

    620mm

    Cambridge waved and breaker

    70mm axle

    120+

    950

    9.50m

    5725kg

    2.50m

    620mm

    Cambridge waved and breaker

    70mm axle

    140+
