Folding Offset Discs

FarmChief’s Quivogne primary cultivation discs can tackle tough country. Chewing up virgin land, out of stubble, or finishing pre-worked ground there’re no problems at all. They’re also engineered for honest, down-to-earth strength so they won’t let you or the farm down.

Gallery

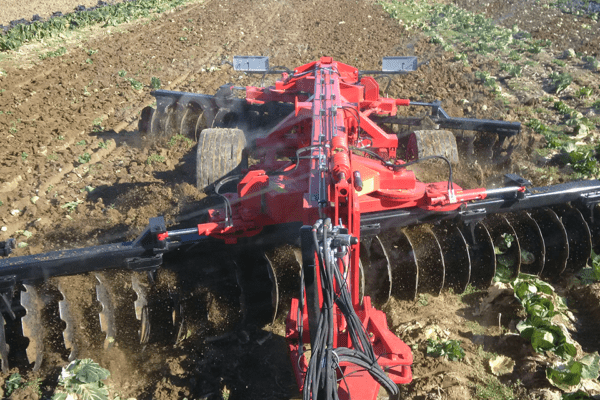

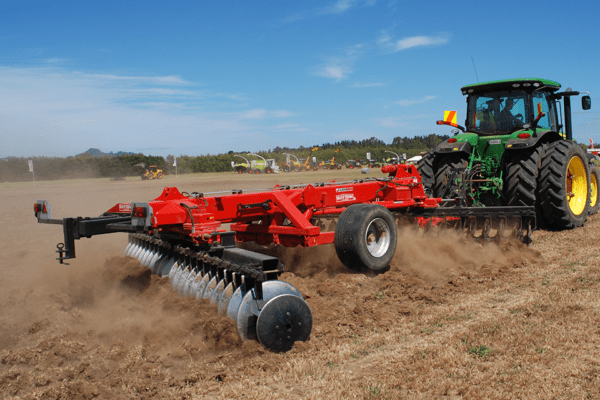

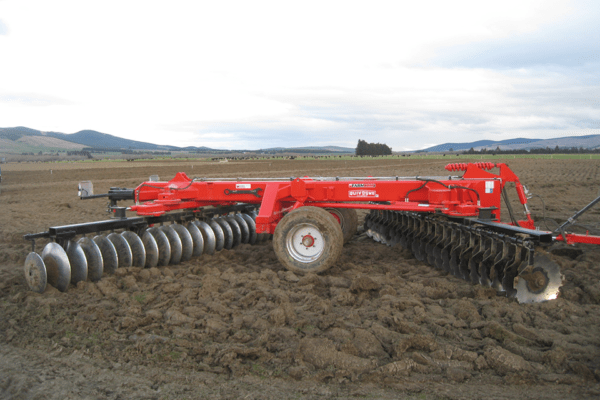

FarmChief Folding Offset Discs
FarmChief Folding Offset Discs
FarmChief Folding Offset Discs
FarmChief Folding Offset Discs
FarmChief Folding Offset Discs
FarmChief Folding Offset Discs

Features and Benefits

FarmChief’s offset discs & cultivating discs cut through the soil, and the competition. Heavy, hardy and delivering a good weight per blade, they’ll go where no plough can. Crop residue can be incorporated and the ground effectively opened up to the air. Even in snow tussock, this hard-worker can be backed to do a good job. Adjustable from the tractor seat, this makes tough-going easy and is great for undulating ground. The finish is level and it’s quicker than ploughing, getting you back into production faster. With sizes varying from 2.7m up to 6m (available on request) they have the range to cover all your requirements. What makes it low maintenance is square, high tensile disc axles on heavy duty triple sealed roller bearings, making these discs a walk in the park. Currently, we have well over 200 units operating in some of New Zealand’s toughest country.

Technical Specifications

Model

Working width

Weight approx.

No. of discs

Disc size

Disc spacing

Cut

HP Required

SOL V 28-66-23

3.20m

3890kg

28

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

110+

SOL V 32-66-23

3.60m

4050kg

32

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

120+

SOL V 36-66-23

4.00m

4300kg

36

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

130+

Model

Working width

Weight approx.

No. of discs

Disc size

Disc spacing

Cut

HP Required

MONO V 32-66-23

3.60m

4160kg

32

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

120+

MONO V 36-66-23

4.00m

4420kg

36

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

130+

MONO V 40-66-23

4.40m

4680kg

40

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

140+

MONO V 44-66-23

4.90m

4850kg

44

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

150+

MONO V 48-66-23

5.40m

5190kg

48

660mm(26in)x6mm

230mm(9in)

Hydraulic or manual cut

160+

Testimonials

Brendon's view

Brendon Hargest farms 360ha on a family partnership sheep and beef property near Gore which varies from rolling to some steeper terrain. Brendon says the rocky terrain is very hard on gear but the discs have Brendon’s endorsement. “They’re really, really good. We’re pleased with how they’re going – they’re robust and simple to use. They were pretty competitively priced too. “They dig in well and leave a nice, level finish. We’re getting a good depth out of them.”

- APL Offset Discs

FarmChief Implement Options

Moore UniDrill Trailing 3

FarmChief Moore Uni-Drill Trailing

This implement can do it all, from different soil types, and different seed types ideal for oversewing, drilling into stubble or into cultivated ground. Its unique simple design and ability to operate has made it a very cost effective drill.

FarmChief Moore Uni-Drill Trailing | View Now

RSR Airseeder Roller

FarmChief RSR Roller Airseeder Drill

AS the heaviest and toughest they maintain an even weight distribution ensuring stability on the ground while also providing a high pressure point for great seed-to-soil contact for planting success on this fixed width roller.

FarmChief RSR Roller Airseeder Drill | View Now

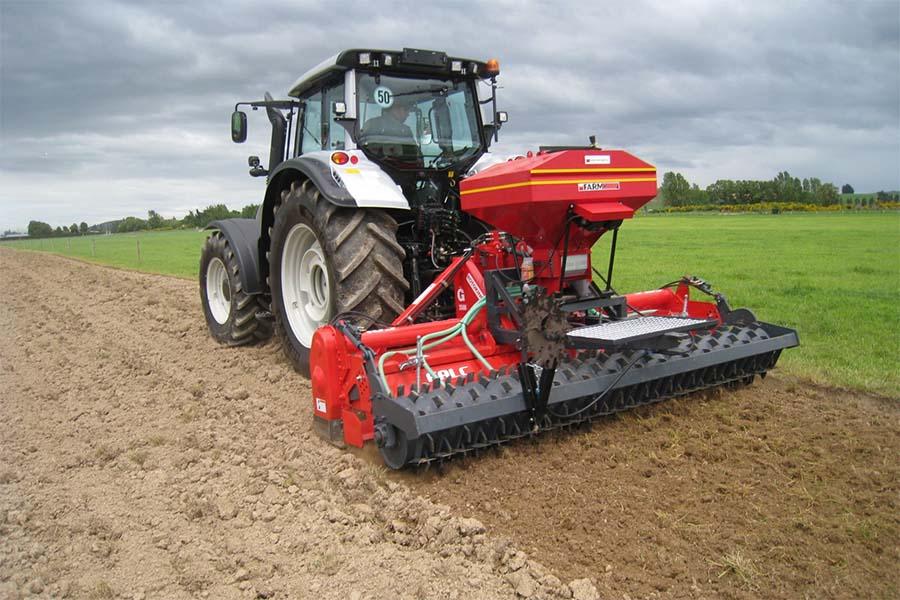

Rotary Hoe / Spike Rotor
