Blackbear EVO Tine Cultivator

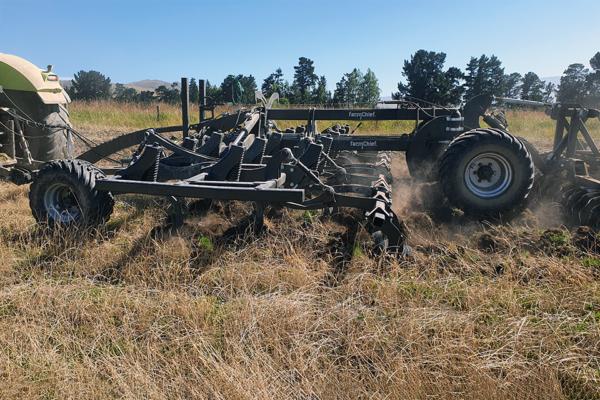

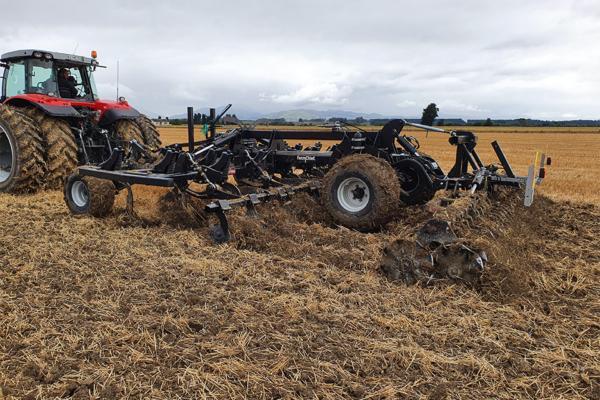

The Blackbear trailed tine cultivator ensures the best working results in the field. Ideal for shallow stubble cultivation as well as deep loosening primary cultivation.

Gallery

The Bear

  • Ability to work all soil, with easy soil penetration even on knotted or stony areas
  • Featuring a large three-beam frame with 3 rows of heavy duty spring auto reset ripper tines followed by a row of Ø450mm flail levelling discs.
  • Tine placement ensures reliable soil penetration, an impressive mixing action, and uniform levelling of the soil
  • 720m trash clearance
  • 650mm spacing between rows of tines, & 310mm spacing between tines
  • Front depth wheels for ultimate ground contour
  • Optional rear drawbar for towing further implements
  • Every conceivable rear roller option (build your own machine)

Technical Specifications

Model

Working width

No. of tines

Weight Approx.

No. of flail discs

HP

EVO 400

4.0m

13

4000kg

10

170+

EVO 460

4.6m

15

4550kg

12

200+

EVO 520

5.2m

17

4800kg

12

230+

EVO 600

6.0m

19

5050kg

14

270+

EVO 650

6.5m

21

5350kg

16

300+
